Verifying exact part numbers, firmware revisions, and hardware compatibility before you place an order is the most important step in sourcing ICS Trusted TMR spare parts. I’ve seen too many plants order a T8100 only to discover the new module’s firmware doesn’t match the existing chassis configuration, and the entire safety loop stays locked out until the mismatch is resolved. ICS Trusted TMR systems hold SIL ratings that depend on correct module-to-chassis pairing, so swapping in a part that isn’t a direct revision match isn’t just an inconvenience—it’s a safety risk.
Are Your ICS Trusted TMR Part Numbers and Revisions Correct?

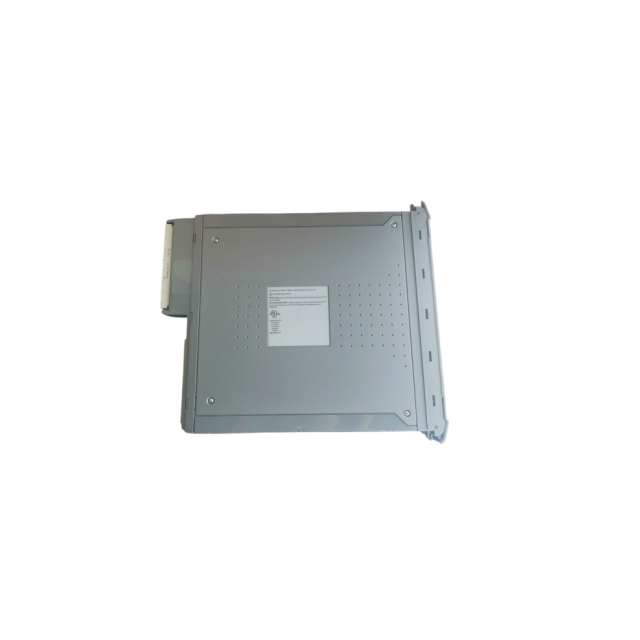

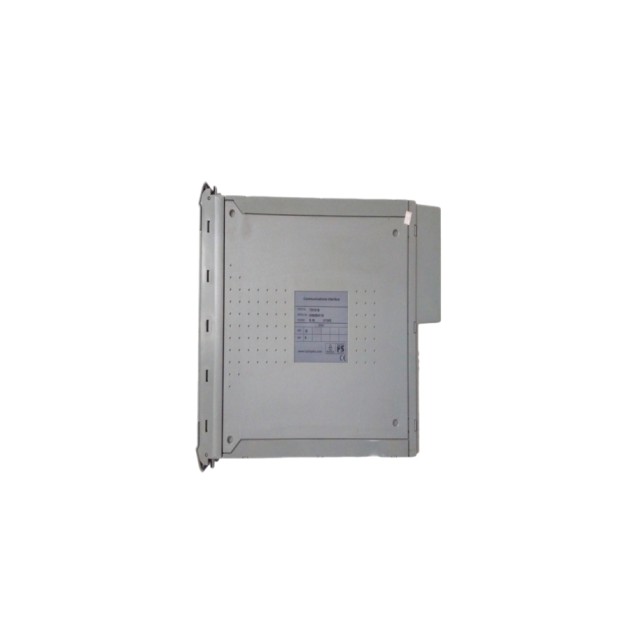

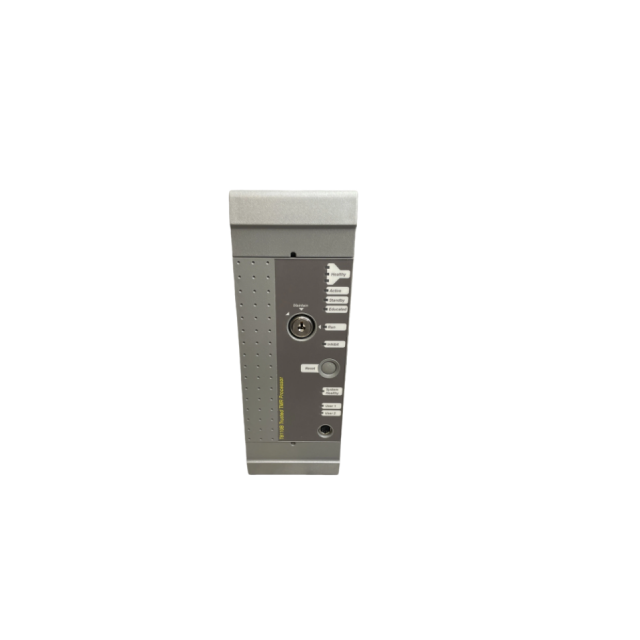

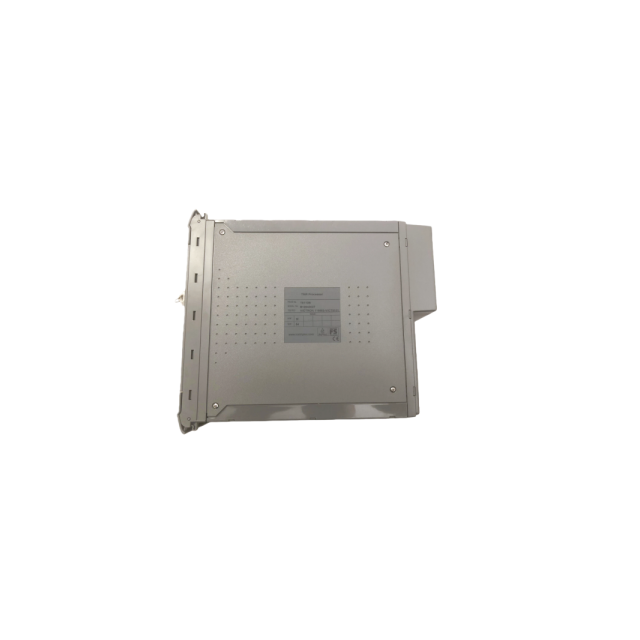

The T8100 processor module, T8110B remote interface, and T8151B/T8153 digital output modules each carry a full part number that includes hardware revision and firmware suffix. The label will show something like “T8110B-1” or “T8151B-02,” and the trailing digits are not optional—they define the electrical interface and the logic set the controller expects. Before you source a replacement, pull the existing module and photograph the nameplate. Compare the revision code against the ICS Triplex configuration software report that your system generates when polling the chassis. I’ve encountered sites where the label had faded and the maintenance log listed an older revision, so the replacement was a revision mismatch, and it wouldn’t link to the system bus until we re-flashed the firmware.

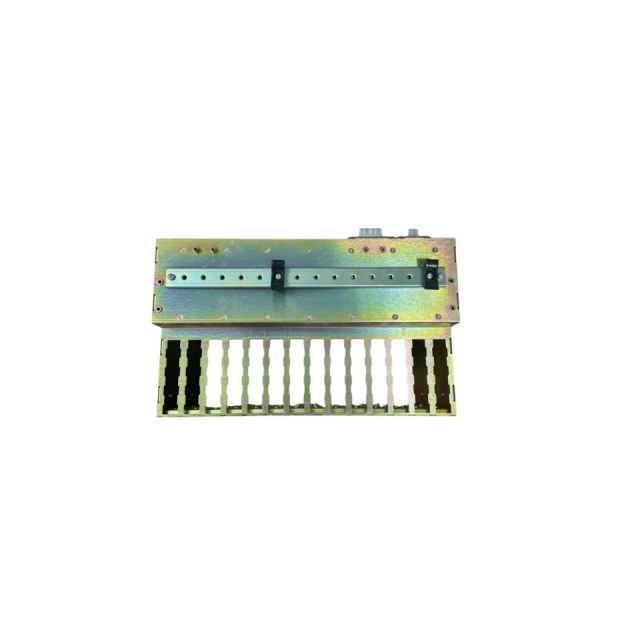

For T8100 processor modules, the critical check is firmware version: a T8100 running Trusted Toolset version 4.3 won’t accept a spare loaded with version 3.9. For T8151B and T8153 output modules, the hardware revision determines the load drive capability and fault diagnostic behavior, so mixing a B-rev with a C-rev can cause intermittent channel faults. Take 10 minutes to record the exact suffix before your purchasing department calls anyone.
Where Can You Source Genuine ICS Trusted TMR Spare Parts?
You can buy through your original system integrator, direct from ICS Triplex, or from an independent aftermarket supplier. Each path has tradeoffs. The integrator will have your system documentation on file and can guarantee revision compatibility without guesswork, but lead times often stretch past 12 weeks for older modules. Direct from ICS Triplex gives you factory-fresh stock with full certifications, but again, the production lead time depends on whether the module is still in active manufacturing.
Aftermarket suppliers who specialize in industrial automation parts, like us at Joyoung International, often stock T8100, T8110B, T8151B, and T8153 modules in ready-to-ship inventory. We source from decommissioned systems, surplus channels, and factory-sealed overstock and then verify each module on a test bench before shipment. The advantage is delivery measured in days, not weeks. The responsibility is on the supplier to guarantee authenticity and functionality, so the vetting process I’ll describe next becomes the deciding factor.
I’ve seen a plant where a T8151B digital output module was purchased from a spot market reseller—it looked genuine but failed channel diagnostics within two months because the internal components were reworked. The cost of that one module was dwarfed by the engineering time spent troubleshooting a mysterious “nuisance alarm” that kept tripping the safety system. A reliable source that provides test reports and warranty support prevents that cascading cost.
How to Evaluate a Supplier for Safety-Critical Modules
Not every supplier that lists ICS Trusted TMR parts has the technical capability to validate them. I use four criteria when qualifying a new source:
Test documentation – The supplier must provide a test report showing each module passed a powered functional test, not just a visual inspection. For a T8100 processor, that report should include all I/O votes and bus communication tests.
Revision transparency – The exact hardware revision and firmware version must be stated on the quotation. Suppliers that avoid listing revisions or say “compatible” without specifics are a red flag.
Return policy for mismatch – If the part arrives and doesn’t link with your system, a supplier who understands industrial safety will accept returns without penalty—they know compatibility is never 100% certain until the module is plugged in.
Response time for technical queries – When you email a question about a T8153’s load rating or a T8110B’s remote I/O distance, how quickly does the supplier’s technical staff reply? Speed signals that they have an engineer, not just a sales desk.
A quick benchmark: send the supplier the same revision check question and see if you get a one-line stock answer or a detailed confirmation. At Joyoung, we keep our ICS Triplex test bench configured to replicate a typical 2oo3 voting architecture so we can verify that a processor module really does execute the internal diagnostics—not just power-on—before it goes out the door.
What to Inspect When You Receive Your ICS Trusted TMR Modules
When the module arrives, open the packaging immediately and inspect before you log it into your spares inventory. This 10-minute check can prevent the module from being installed with a defect that wouldn’t be caught until the next proof test.
First, match the nameplate revision to the quotation and your own photos of the failed module. Any discrepancy means you need to contact the supplier before installation. Second, look at the connector pins under a magnifying light—reworked modules often show solder flux residue or uneven pin lengths. Third, check the anti-tamper seals: ICS factory modules have specific seal positions over the chassis screws, and aftermarket rework often breaks or replaces those seals with generic ones.
Fourth, if the supplier provided a test report, compare the serial number on the report with the module itself. I once caught a mismatch where the test report looked perfect but was actually for a different module, and the physical unit had visible rework on the output driver chips. That module would have passed a casual glance but likely would have failed under load.
Managing Long-Term Spares: After-Sales Support and Lifecycle Planning
Once you’ve installed the spare, the next step isn’t just to close the purchase order—it’s to record the event in your lifecycle plan. ICS Triplex modules like the T8100 and T8110B are being phased out in some industries as newer safety platforms are adopted, so availability will tighten. A good supplier will notify you when stock levels drop or when a particular revision becomes hard to find, giving you enough time to buy a strategic spare or consider a phased migration.
I recommend storing at least one additional tested spare of your most critical module type, particularly the processor and remote interface modules, because they’re single points of failure in the TMR architecture. If you wait until a failure to source a replacement, you’re gambling with your shutdown timeline. We’ve seen chemical plants keep a cold spare T8100 in their maintenance shop for five years, and when the primary unit faulted, the spare plugged in and voted up in under 30 minutes—avoiding a process trip that would have cost far more than the spare’s purchase price.
Sourcing That Protects Your Safety System Integrity
Your TMR safety system’s SIL rating is only as strong as the weakest module in the chassis. A single substandard or mismatched spare can degrade voting integrity and cause nuisance trips or, worse, fail to act on a real demand. The difference between a reliable source like Joyoung International and a no-questions-asked spot market seller is the technical effort that goes into verifying each part before it reaches your maintenance bench.
If you need a T8100, T8110B, T8151B, or T8153 module quickly and with documented test results, send your part number and required revision to chen@htechplc.com or reach our technical team at +86-181-5013-7565. Include a photo of the existing nameplate and your target delivery date, and we’ll confirm availability and compatibility the same day.
Common Questions About ICS Trusted TMR Spare Parts
Can I substitute a T8110B for a T8100 processor module?
No. The T8100 is the central processor module that executes the application logic, while the T8110B is a remote interface module designed to extend the I/O bus over distance. They have different backplane connectors and different firmware loads, so they aren’t interchangeable. If your processor fails, you must source an exact T8100 match.
What firmware revision do I need for a T8151B digital output module?
It depends on the Trusted Toolset version your system currently uses. I typically look at the system diagnostics page to see which firmware the existing I/O modules are running. If your plant’s configuration calls for firmware 3.x and you install a module with 4.x, the controller may reject it outright or operate with limited diagnostics. I recommend taking the firmware version from the module you’re replacing and asking your supplier to confirm the exact match before shipping.
How can I tell if a T8153 module is factory genuine?
There are three quick checks you can do: (1) inspect the anti-tamper seals over the chassis screws—factory seals have a specific pattern and adhesive that rework often can’t replicate; (2) look at the PCB solder joints near the output drivers; reworked modules often show uneven reflow, flux residue, or component markings that don’t match the original bill of materials; and (3) check the label’s revision suffix against the firmware version readout when the module is polled in a test chassis. If those don’t match, the module has been reprogrammed or rebuilt. Any of these signs means the module shouldn’t go into a safety loop.
What’s the lead time for a T8100 from an aftermarket supplier?
In my experience at Joyoung, if a T8100 with a common firmware revision is in ready stock, we ship within 48 hours after order confirmation. For rare revision suffixes or when stocks are low, we can still locate the part within a week through our network. The advantage over factory lead times—which can be 8–12 weeks—is that we treat the test and release process as a same-day task: the module is powered, firmware verified, votes tested, and packed the same afternoon. That speed keeps your shutdown window short.
Should I keep a spare T8110B even if I haven’t had a failure yet?
Yes, and I’ve seen plants that benefit from that decision. The T8110B remote interface module is a single point of failure for remote I/O segments, and if you’re running a distributed safety architecture across multiple skids, losing one T8110B can take an entire zone offline. Having a tested spare in your store means your maintenance team can swap it in under an hour. If you’re unsure which revision to stock, share your current system configuration with our team—we’ll help you identify the exact part number that matches your chassis.
