ABB DSTD 306 57160001-SH Connection Board

DSTD 306 57160001-SH Advantages

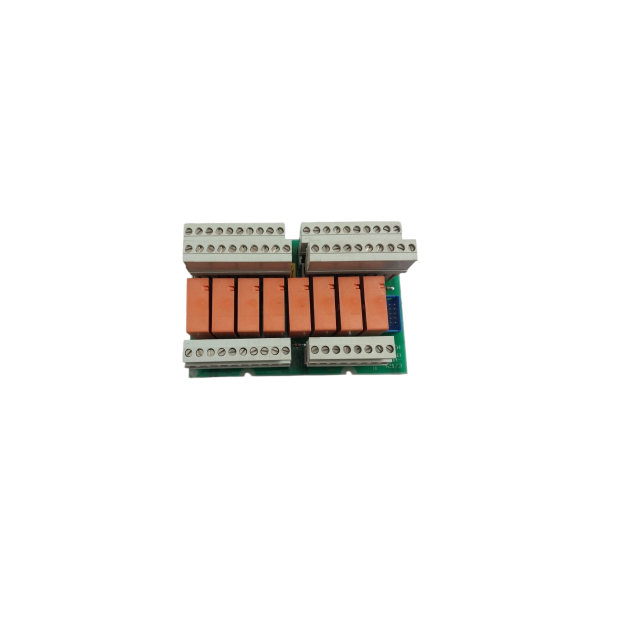

ABB DSTD 306 57160001-SH Connection Board provides standardized, safe and reliable signal wiring transfer solution for ABB Advant OCS distributed control system. The integrated multi-channel centralized wiring structure uniformly arranges massive field signal cables, tidies up the internal wiring of control cabinet, reduces wiring disorder, wrong wiring and loose wire hidden dangers caused by scattered wiring, and lowers the difficulty of later equipment maintenance. The built-in single-channel independent filtering and surge protection circuit can filter high-frequency interference signals in real time and block abnormal reverse voltage from field cables, avoid cross-channel fault diffusion caused by field short circuit, and effectively protect expensive core I/O modules from impact damage, greatly reducing equipment maintenance and replacement costs. The multi-path compatible wiring terminal design supports access of various industrial analog and digital signal lines without additional transfer adapters, simplifying cabinet assembly procedures and shortening project cabinet prefabrication cycle. The hot-swap compatible design brings great convenience for field cable reconstruction and daily system maintenance; technicians can directly extract and replace faulty connection boards without stopping the whole production control system, avoiding huge economic losses caused by full production line shutdown and remarkably shortening fault troubleshooting and production recovery cycle. The embedded multi-channel wiring self-diagnosis system continuously monitors the connection state of all signal loops. Once open circuit, short circuit or poor contact abnormality is detected, the board immediately uploads exclusive fault code alarm information to upper monitoring platform, maintenance staff can quickly lock abnormal wiring channels without additional professional testing instruments. The integral metal shielding shell isolates external strong electromagnetic radiation interference generated by on-site large motors and frequency converters, ensuring that signal transmission will not generate drift or distortion under complex electromagnetic environment, guaranteeing accurate signal transmission between field equipment and control modules. All DSTD 306 57160001-SH connection boards are produced strictly in accordance with ABB unified Swiss precision manufacturing standards, each unit passes high-low temperature cycle aging test, long-time continuous signal transfer stability test, mechanical vibration resistance test and electromagnetic interference anti-disturbance verification before factory delivery, with consistent transfer performance and strong interchangeability, which can be freely replaced during system expansion and production line reconstruction without readjusting original cabinet wiring layout. The ultra-wide operating temperature range adapts to high-temperature, humid and dusty harsh cabinet environments in energy, chemical and papermaking industries, with no signal attenuation or protection misoperation under 24-hour uninterrupted continuous operation.

Get the ABB DSTD 306 57160001-SH with fast worldwide delivery — in‑stock units ship within 2‑3 business days of payment confirmation.

• Email: chen@htechplc.com

• WhatsApp / Phone: +86-181-5013-7565

• Shipping carriers: DHL, FedEx, UPS, TNT

Why buy from us:

• 100% new and genuine ABB DSTD 306 57160001-SH Connection Board

• Every product tested before shipment

• Professional anti-static packaging

• One‑year warranty on all units

• Free online quotes and 24/7 technical support

• Competitive pricing with fast global delivery

DSTD 306 57160001-SH Applications

ABB DSTD 306 57160001-SH Connection Board is the core wiring transfer matching component of ABB Advant OCS distributed control platform, widely applied to new DCS system construction and old control system transformation upgrading projects of thermal power plants, petrochemical production bases, pulp and paper continuous production lines, metallurgical smelting workshops, municipal sewage treatment stations and chemical fertilizer manufacturing factories equipped with Advant OCS systems. As the intermediate wiring carrier connecting cabinet internal I/O modules and field signal cables, it undertakes centralized transfer and safety isolation of all on-site analog measurement signals and digital switch signals, provides barrier protection for backend core control modules, and supports rapid cable rearrangement and wiring fault inspection in daily production operation. The product is applicable to complete set assembly of new project DCS control cabinets, signal wiring system renovation of aging Advant OCS control systems, intelligent factory field signal transmission reconstruction and safety isolation wiring system construction projects, acting as the indispensable wiring transfer carrier supporting stable two-way signal interaction between Advant OCS distributed control system and field detection and execution equipment.
