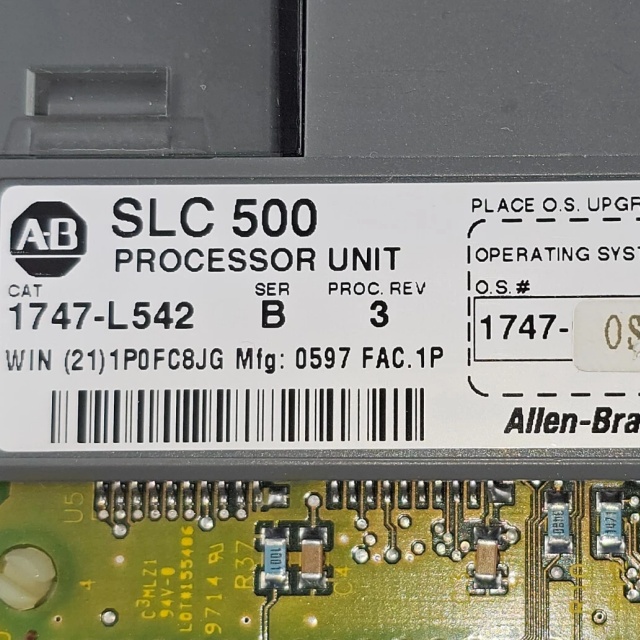

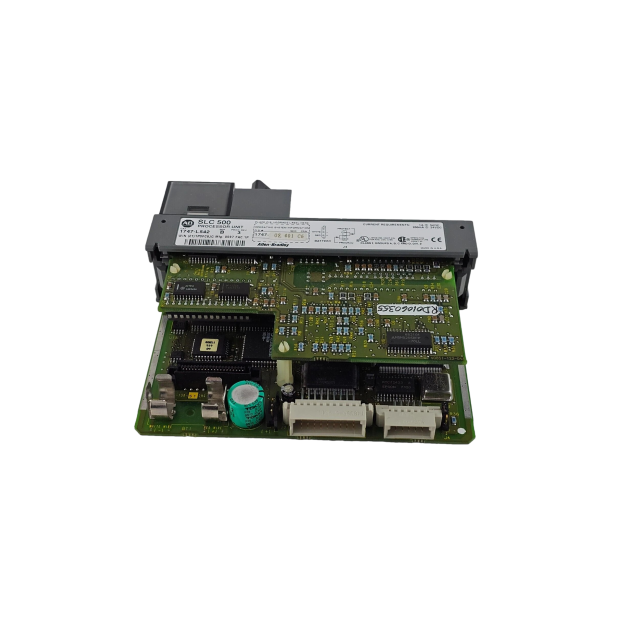

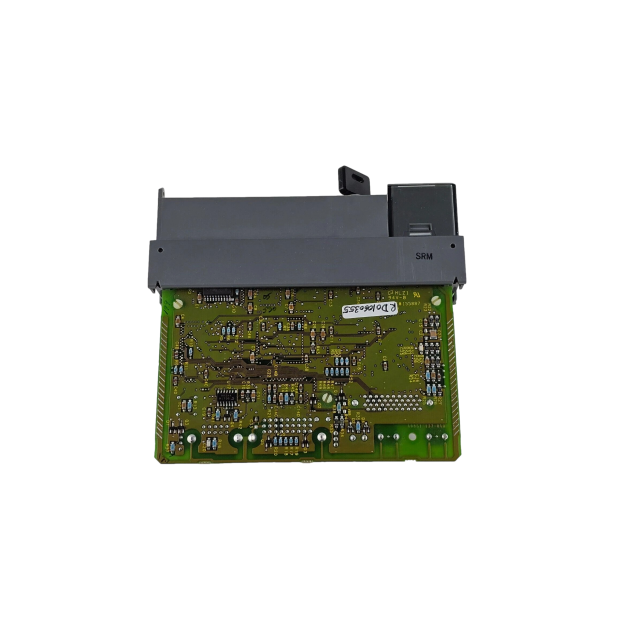

1747-L542/B Advantages
The Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT stands out from comparable PLC processor modules in several key areas.
Medium‑capacity 32K‑word memory architecture. The Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT provides 32K combined program and data‑table memory, supporting moderately‑complex ladder‑logic, process data storage and analog processing for medium‑size automation projects.
Built‑in DH+ high‑speed data‑highway communication capability. The Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT integrates DH+ communication port with selectable baud rates, supporting multi‑controller peer‑to‑peer networking, HMI connection and messaging without additional communication adapter modules.
Multi‑protocol RS‑232 serial channel. The Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT supports DF1, DH‑485, ASCII and Modbus RTU master protocols on the RS‑232 port, enabling connection to third‑party field devices and legacy serial automation systems.
Expandable non‑volatile memory‑backup options. The Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT supports 1747‑BA lithium battery for RAM retention and 1747‑M12 flash memory module for permanent program storage, guarding against program loss caused by power failure or battery expiry.
Key‑switch mode selection plus multi‑LED comprehensive diagnostics. The Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT provides physical key‑switch for RUN / REM / PROG mode control and dedicated LED indicators for processor run, fault, battery‑low, DH+ and serial communication status, allowing technicians to rapidly assess system state and locate faults without programming software.
Native Allen‑Bradley 1747 SLC‑500 integration. As a factory‑original revision‑B Allen‑Bradley 1747 series component, the Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT works natively with all standard 1746 I/O modules and SLC‑500 chassis, configured via RSLogix 500 software without conversion adapters.
1747-L542/B Applications
Discrete Manufacturing & Process Automation Production Lines. Main medium‑performance CPU processor within Allen‑Bradley 1747 SLC‑500 PLC systems, executing control logic for medium‑complex assembly machinery and multi‑station production lines with DH+‑based HMI and multi‑PLC networking.
Material Handling & Conveyor Systems. The Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT runs multi‑zone conveyor control logic, processes large‑volume discrete I/O and realizes DH+ connection to supervisory monitoring systems inside medium‑scale material‑handling control cabinets.
Water Treatment & Wastewater Control Plants. The Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT serves as main processor for medium‑size water‑process facilities, managing pump interlock, analog instrument loops and plant‑wide DH+ supervisory communication.
Petrochemical & Chemical Processing Facilities. The Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT delivers sequence and analog control for non‑hazardous‑zone medium‑complexity automation cabinets built around Allen‑Bradley SLC‑500 automation hardware.
General Industrial PLC‑based Control Systems. The Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT serves as original spare revision‑B SLC 5/04 CPU hardware for existing Allen‑Bradley 1747 SLC‑500‑based distributed automation systems.
1747-L542/B Certifications & Compliance
The Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT holds the following international safety and compliance approvals:
• UL listed — North‑American industrial control equipment safety approval.
• CE certification — European industrial control equipment safety and EMC compliance.
• C‑Tick marked — EMC compliance for Australian and New Zealand markets.
• Class I Division 2 certified — Suitable for installation in specified hazardous classified locations.
All modules supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1747‑L542/B CPU PROCESSOR UNIT unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
