1747-PIC Advantages
The Allen‑Bradley 1747‑PIC Personal Computer Interface Converter stands out from comparable communication converters in several key areas.
Professional RS‑232 to DH485 signal conversion. The Allen‑Bradley 1747‑PIC Personal Computer Interface Converter realizes bidirectional signal conversion between PC RS‑232 port and SLC‑500 DH485 bus, solving the interface mismatch problem between common serial PCs and SLC‑500 controllers.
Stable DH485 communication performance. The Allen‑Bradley 1747‑PIC Personal Computer Interface Converter supports DH485 bus communication, compatible with multiple SLC 5/0x processors, and the Allen‑Bradley 1747‑PIC Personal Computer Interface Converter maintains stable data transmission during online programming and monitoring.
Convenient commissioning and maintenance tool. The Allen‑Bradley 1747‑PIC Personal Computer Interface Converter works with RSLogix 500 software, the Allen‑Bradley 1747‑PIC Personal Computer Interface Converter supports online monitoring, force operation, fault reading and program backup for SLC‑500 PLC.
Clear status indication. The Allen‑Bradley 1747‑PIC Personal Computer Interface Converter is equipped with LED indicators for power and communication status, technicians can quickly judge the working state of the Allen‑Bradley 1747‑PIC Personal Computer Interface Converter without extra testing tools.
Wide compatibility with Allen‑Bradley 1747 series. As a factory‑original communication accessory of Allen‑Bradley 1747 series, the Allen‑Bradley 1747‑PIC Personal Computer Interface Converter matches mainstream SLC 5/01, 5/02, 5/03, 5/04 processors without extra adapters.
1747-PIC Applications
PLC On‑site Commissioning. Dedicated programming converter within Allen‑Bradley 1747 SLC‑500 PLC systems, used for downloading control program from PC to SLC processors and uploading program backup from SLC processors to PC.
Production Line Fault Troubleshooting. The Allen‑Bradley 1747‑PIC Personal Computer Interface Converter connects PC to SLC‑500 DH485 bus, maintenance staff use the Allen‑Bradley 1747‑PIC Personal Computer Interface Converter to view real‑time I/O status and alarm information of the control system.
Program Backup & Version Management. The Allen‑Bradley 1747‑PIC Personal Computer Interface Converter serves as the communication bridge for regular program backup of SLC‑500 controllers in discrete manufacturing, water treatment and conveyor control systems.
Legacy SLC‑500 System Retrofit & Maintenance. The Allen‑Bradley 1747‑PIC Personal Computer Interface Converter is widely used for spare parts replacement and communication maintenance of old SLC‑500 automation cabinets.
General Industrial Serial Communication Conversion. The Allen‑Bradley 1747‑PIC Personal Computer Interface Converter provides standard RS232‑DH485 conversion for Allen‑Bradley 1747 series PLC projects.

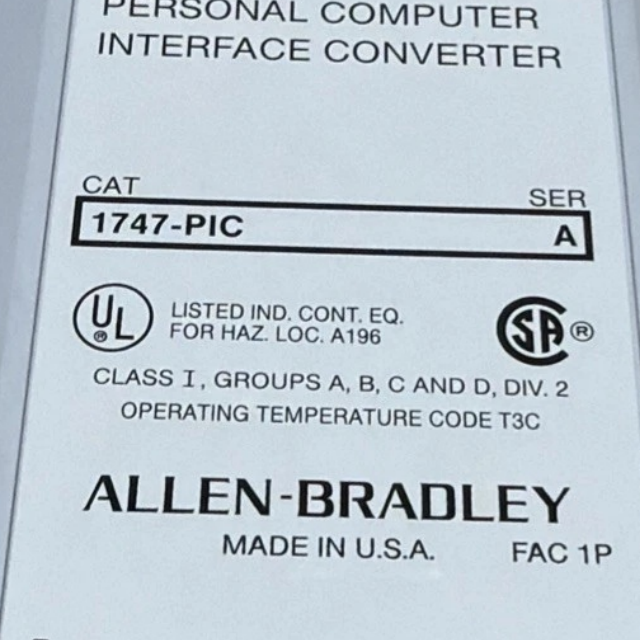

1747-PIC Certifications & Compliance
The Allen‑Bradley 1747‑PIC Personal Computer Interface Converter holds the following international safety and compliance approvals:
• UL listed — North‑American industrial control equipment safety approval.
• CE certification — European industrial control equipment safety and EMC compliance.
• C‑Tick marked — EMC compliance for Australian and New Zealand markets.
All modules supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1747‑PIC Personal Computer Interface Converter unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
