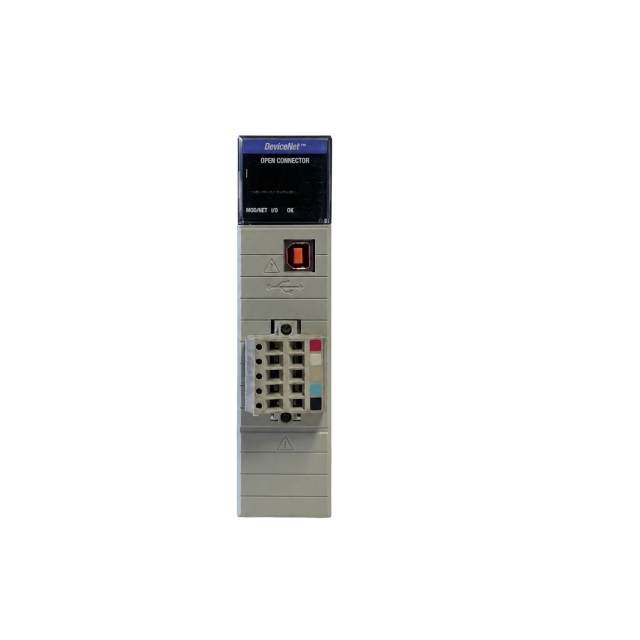

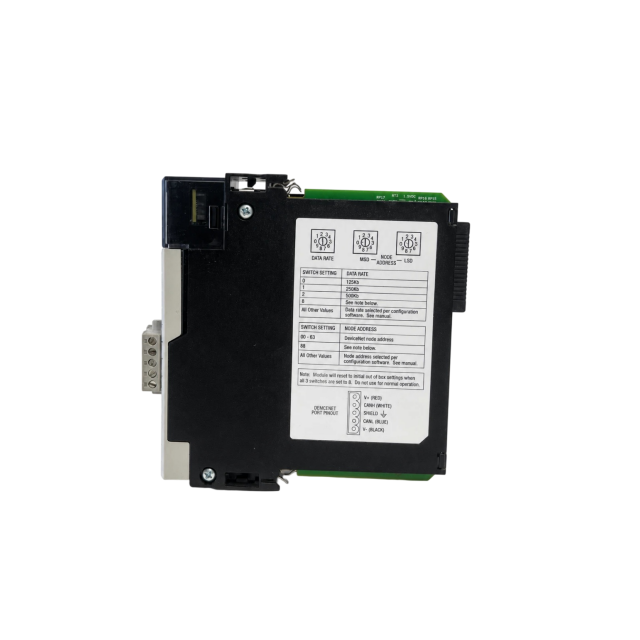

1756-DNB Advantages
The Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module stands out from comparable network modules in several key areas. Integrated DeviceNet scanner and bridge function. The Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module acts as both network scanner and bridge, the Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module can scan DeviceNet slave nodes and route data between ControlLogix backplane and DeviceNet network. Selectable DeviceNet communication baud rates. The Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module supports 125 kbps, 250 kbps and 500 kbps baud rate options to match different DeviceNet network layout and cable length requirements. Native ControlLogix backplane integration. As a factory‑original communication module of Allen‑Bradley 1756 series, the Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module directly plugs into 1756 chassis, no extra conversion adapter required. Comprehensive diagnostic LED indication. The Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module is equipped with LEDs for module status, network status and fault status, technicians can quickly locate fault points of the Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module without complex diagnostic tools. Convenient configuration via RSLogix 5000. Users can configure node address, baud rate and scanned slave device list for the Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module inside RSLogix 5000 software, supporting online edits and network monitoring.
1756-DNB Applications
DeviceNet Field I/O Network Integration. DeviceNet bridge scanner module within Allen‑Bradley 1756 ControlLogix PLC systems, the Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module connects ControlLogix controllers to DeviceNet slave I/O blocks, sensors and actuators. Variable Frequency Drive and Smart Device Networking. The Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module enables communication between ControlLogix CPU and DeviceNet-enabled drives, motor starters and other smart automation devices. Legacy DeviceNet Automation System Maintenance. The Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module is stocked as spare replacement part for existing ControlLogix DeviceNet networks. Assembly Line and Material Handling Control. The Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module is widely used in packaging, conveyor and assembly systems that adopt DeviceNet fieldbus. Industrial Automation Turnkey Project Fieldbus Networking. The Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module serves as standard DeviceNet scanner interface for ControlLogix automation solutions.
1756-DNB Certifications & Compliance
The Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module holds the following international safety and compliance approvals: • UL listed — North‑American industrial control equipment safety approval. • CE certification — European industrial control equipment safety and EMC compliance. • C‑Tick marked — EMC compliance for Australian and New Zealand markets. • Class I Division 2 certified — Suitable for installation in specified hazardous classified locations.
All modules supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1756-DNB ControlLogix DeviceNet Bridge Scanner module unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
