Basic Identification
Basic Info | Manufaturer/Brand: EMERSON |

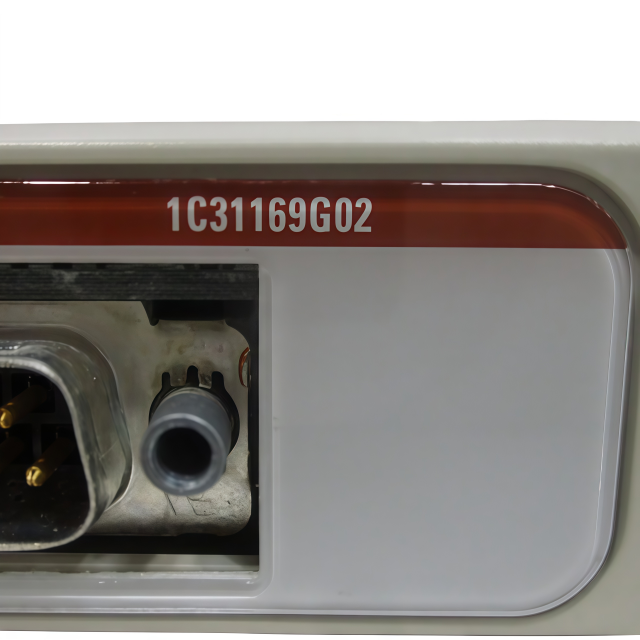

Part number: 1C31169G02 |
Payment Method: T/T |
Original new: Brand New |
MOQ: 1 PC |
Country of Origin:USA |
Shipping from: Xiamen city, Fujian Province |
Key Information

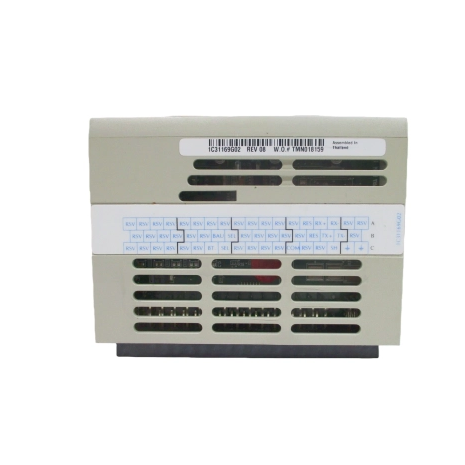

●Basic Identity: Personality Module for Westinghouse Ovation Link Controller (LC), part of the Ovation
Process Control System. Works with Electronics Module (1C31166G01) and Base Unit to enable RS-
485/RS-422 four-wire full-duplex serial communication between Ovation Controller and third-party
devices.

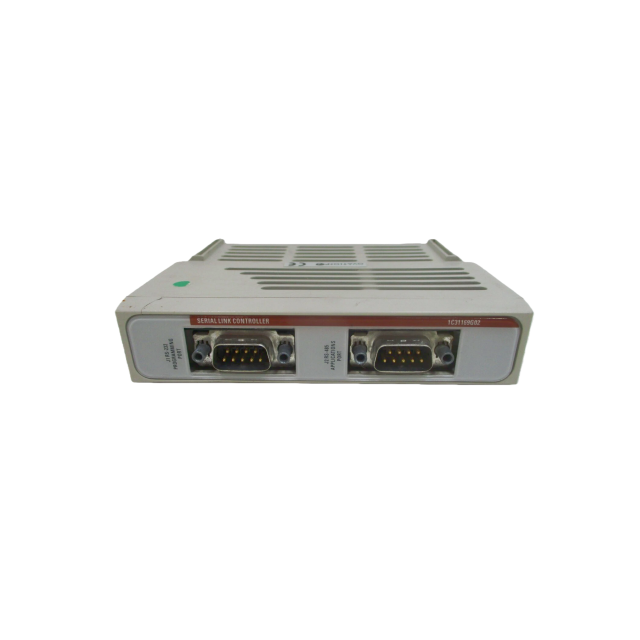

●Communication Ports: J1 (RS-232 Programming Port) for PC connection (default baud 19200,
selectable to 9600 via jumper, non-isolated); J2 (RS-485/RS-422 Applications Port) with baud rate 300–
19200 kbit/s, galvanic isolation (1000 V AC peak/DC), supports two-wire half-duplex via wiring
modification.
●J2 Port Details: Pin assignments (RX-:1, RX+:2, TX+:3, TX-:4, Com:5); transmitter enabled via Bit 1 of
UART Modem Control register (I/O address 03FCH); supports terminal block/DB9 wiring, user-
selectable termination resistors via jumpers.
●Hardware Traits: Configurable jumpers (baud rate, boot-up, termination resistors); 12 diagnostic
LEDs (Power OK, Communications OK, faults, status indicators); power from Base Unit (LC typical 3 W,
max 4 W); IP20 protection, Base Unit dimensions 27.9×12.7×16.5 cm.
●Environmental Specs: Operating temperature 0–60 °C, storage temperature -40–85 °C, 0–95% non-
condensing humidity.
●Software & Tools: Pre-installed DOS 5.0 (recoverable via RLCEXTPC.EXE/RLCFLASH.EXE); compatible
with Ovation Control Builder and SLC algorithms for data exchange.
●Installation & Compliance: CE Mark compliant; install Personality Module first in Base Unit, then
Electronics Module; field wiring to Base Unit terminal block, mandatory shield grounding; supports
on-line replacement in dual-redundant configurations.
Complementary Components: Requires 1C31166G01 Electronics Module, Base Unit; twisted-pair
shielded cables (RS-485/RS-422), DB9 programming cables; DOS 5.0 bootable floppy.
