When a Honeywell C300 controller module fails, the immediate priority is finding Honeywell C300 parts that can be delivered fast, with full confidence in their authenticity. The CC-PAIM01 and CC-PAIN01 analog input modules are core to the Experion PKS C300 architecture, and yet sourcing genuine replacements often means navigating part number confusion, uncertain lead times, and the risk of counterfeit units. As a supplier who handles these exact modules daily for global industrial clients, I know exactly how to approach procurement so you get the correct, tested parts without weeks of system downtime.
Critical Role of Honeywell C300 I/O Modules in Process Control
The Honeywell C300 controller relies on its I/O modules to handle analog and digital signals across every loop. When a CC-PAIM01 or CC-PAIN01 begins to drift or fails outright, the entire control loop can degrade, creating safety risks and production losses. These modules are no longer in active production, which means the market is increasingly dependent on independent suppliers who maintain global inventories. The real danger is not just failure but the delay caused by resellers who cannot confirm stock immediately. Engineers who work with legacy Honeywell systems know that waiting weeks for a part number reply while a process sits idle is unacceptable. That is why sourcing from a supplier who physically holds the parts and can verify firmware compatibility before shipping is the first decision that determines how quickly your system returns to normal.
CC-PAIM01 Specifications, Compatibility, and Sourcing Pitfalls
The CC-PAIM01 is a 16-channel analog input module designed for the C300 controller series. It accepts 4-20 mA signals and provides HART pass-through for smart field devices. Before ordering a replacement, the most common mistake I see is overlooking the firmware revision. Two CC-PAIM01 modules with different firmware can cause configuration mismatches that take hours to diagnose. I always recommend sharing the full part number and any visible firmware label when sending an inquiry. This allows me to cross-check inventory for the exact revision your system requires. The module also has specific termination assembly requirements, and we often ship the matching terminal block as a set to avoid on-site mating issues. There is no substitute for matching the module you are pulling out to the one being shipped, and a quick photo exchange before dispatch has prevented countless mismatches.
CC-PAIN01 Analog Input Module: Cross-Referencing and Order Verification

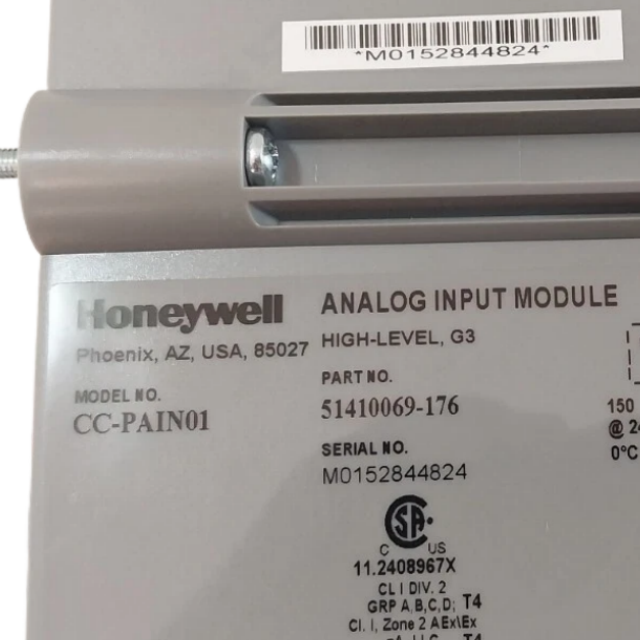

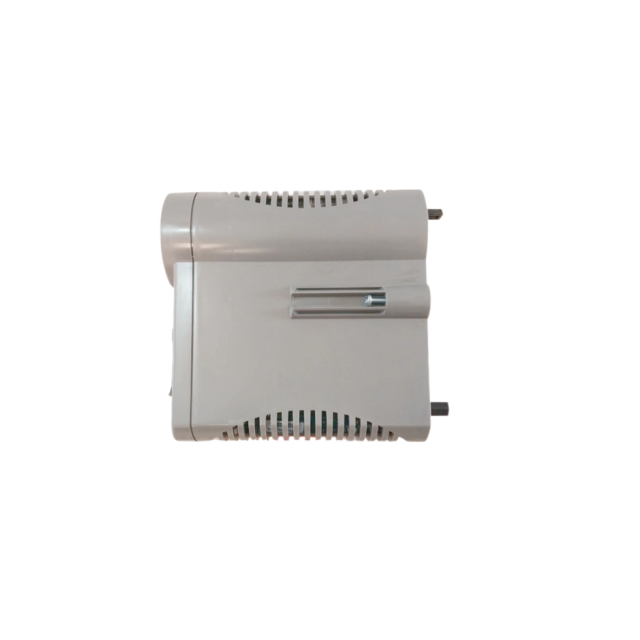

The CC-PAIN01 is another 16-channel analog input module, often confused with the PAIM01, but it supports different signal ranges and in some cases different channel isolation characteristics. When a site says they need a PAIN01, I always double-check the process tag and signal type—because in a surprising number of upgrade projects, the original PAIN01 was swapped for a PAIM01 years ago and the documentation was never updated. Listing both module types on a single inquiry may seem safer, but it actually increases the chance of shipping the wrong part if the system revision isn’t confirmed. The most reliable approach is to provide the module name, the full part number, and the controller chassis slot position if possible. Our team checks all three against the Honeywell compatibility matrix before releasing any order, which catches mismatches that would otherwise only surface at startup.
If your program involves mixed I/O module revisions or a partial upgrade where old and new cards must coexist in the same chassis, it’s worth confirming electrical compatibility before finalizing your bill of materials—reach out at chen@htechplc.com.
Global Supply Chain for C300 Spares: Lead Times, Logistics, and Quality
Once the correct module is identified, the bottleneck becomes logistics. Our stock is held in multiple warehouses across Asia and Europe, so we can typically ship a CC-PAIM01 or CC-PAIN01 within 24 hours of order confirmation. International freight times vary, but we use DHL and FedEx priority services that deliver to most industrial hubs in three to five business days. The real edge in industrial spares is having a supplier who will send you a photo of the actual module with its serial number before shipping, and who can arrange pre-clearance documents so the package does not sit in customs. We have done this for clients in oil and gas, power generation, and chemical processing who cannot afford to lose even a single shift. In one recent case, a Middle Eastern refinery needed a CC-PAIN01 replacement urgently, and we had the module airborne within six hours of their purchase order, arriving on site three days later.
Ensuring Genuine Honeywell C300 Modules in Your Procurement
The market for legacy Honeywell spare parts includes a non-trivial number of refurbished units sold as new and even outright counterfeits. We physically inspect every module for original Honeywell labeling, factory solder quality, and correct PCB revisions. When requested, we provide high-resolution photos of the exact unit before payment. I also recommend that clients ask for a test bench report even if the module is new-old-stock, because extended shelf storage can affect electrolytic capacitors in input circuitry. A reliable supplier will not hesitate to provide traceability records and pre-shipment photos. If you receive a quote that is significantly below market average for a Honeywell C300 part, treat that as a red flag, not a bargain. Modules with vague descriptions like “compatible replacement” should be avoided entirely. The only safe path is verifying that the module you order is the module you receive, and that it matches the specification your system requires.
Rapid Support for Your Honeywell C300 Parts Requirements
When a critical process is down because of a failed analog input module, every hour counts. I understand the pressure to find the correct Honeywell C300 parts immediately, and the frustration of dealing with suppliers who cannot confirm stock or who ship something that does not match your system revision. My team and I handle CC-PAIM01 and CC-PAIN01 modules every day, and we can confirm availability, firmware, and shipping timelines within one business hour of your inquiry. Share your part numbers, quantities, and your desired delivery window, and we will confirm stock and provide a firm quotation on the spot. Send your inquiry to chen@htechplc.com or call +86-181-5013-7565.
Common Questions About Sourcing Honeywell C300 Modules
How can I confirm whether I need a CC-PAIM01 or a CC-PAIN01?

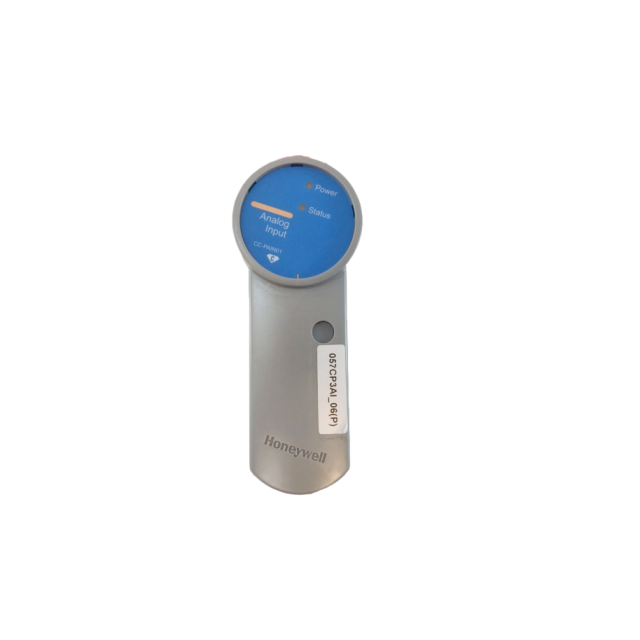

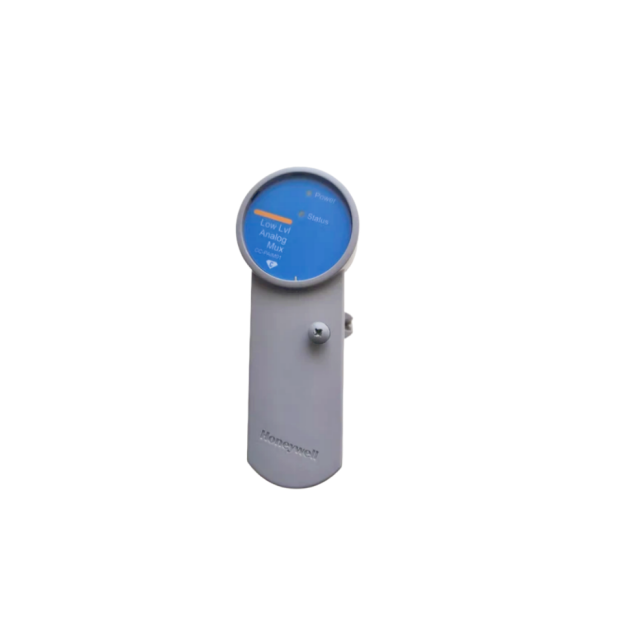

The quickest method is to check the module name printed on the front faceplate. If the faceplate is worn, read the part number from the side label and share it with us. In programs I have supported, about one in five inquiries where the client guesses the module type turns out to be the wrong one, so I always insist on verifying before shipment.
What is the difference between a new-old-stock module and a refurbished one?
New-old-stock means the module was manufactured by Honeywell but never installed; it should arrive in original packaging with factory seals. Refurbished modules have been repaired by a third party and may carry unknown firmware modifications. My experience is that new-old-stock units are the safest choice when they are available, provided they have been stored properly. Always request photos of the actual unit before purchasing.
Can you ship Honeywell C300 spare parts globally, and how long does delivery take?
We ship globally to most industrial centers and use express logistics partners that deliver within three to five business days in most cases. If your facility is in a remote location, sharing a commercial address or freight forwarder can speed up the last-mile leg. I always communicate the exact tracking number and expected delivery date as soon as the package is tendered.
Do you keep both CC-PAIM01 and CC-PAIN01 in stock simultaneously?
Yes, we maintain stock of both module types and can ship either one quickly. If you need multiples for a planned maintenance or a full rack replacement, we can reserve the quantity for you after receiving the purchase order. Send your requirement now and we will confirm availability and pricing immediately.
