1756-IB16 Advantages
The Allen‑Bradley 1756‑IB16 Digital PLC Input Module stands out from comparable discrete input modules in several key areas.
High‑density 16‑point DC sinking input design. The Allen‑Bradley 1756‑IB16 Digital PLC Input Module provides 16 DC sinking input channels within one ControlLogix slot, the Allen‑Bradley 1756‑IB16 Digital PLC Input Module saves valuable cabinet rack space for multi‑signal acquisition applications.
User‑configurable input filter function. The Allen‑Bradley 1756‑IB16 Digital PLC Input Module supports multiple selectable filter time settings, the Allen‑Bradley 1756‑IB16 Digital PLC Input Module suppresses field electrical noise and contact bounce for stable signal reading.
Group‑based electrical isolation. The Allen‑Bradley 1756‑IB16 Digital PLC Input Module provides 250V continuous isolation between two input groups and ControlLogix backplane, the Allen‑Bradley 1756‑IB16 Digital PLC Input Module reduces interference propagation from field DC circuits to PLC internal circuitry.
Channel‑by‑channel LED status indication. The Allen‑Bradley 1756‑IB16 Digital PLC Input Module features individual LED indicators for every input channel, technicians can quickly check on‑off status of each connected field device of the Allen‑Bradley 1756‑IB16 Digital PLC Input Module without additional measuring instruments.

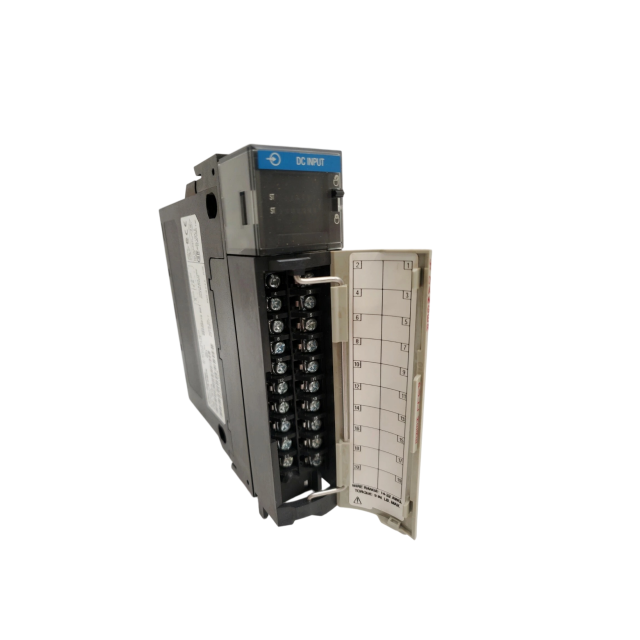

Native ControlLogix backplane integration. As a factory‑original I/O module of Allen‑Bradley 1756 series, the Allen‑Bradley 1756‑IB16 Digital PLC Input Module directly plugs into 1756 chassis and works with 20‑pin removable terminal blocks, configured via RSLogix 5000 software without conversion adapters.
1756-IB16 Applications
Factory Discrete DC Signal Acquisition. 24V DC sinking discrete input module within Allen‑Bradley 1756 ControlLogix PLC systems, the Allen‑Bradley 1756‑IB16 Digital PLC Input Module collects status signals from PNP pushbuttons, limit switches, relay auxiliary contacts and field‑mounted DC‑type sensors.
Material Handling and Conveyor Control. The Allen‑Bradley 1756‑IB16 Digital PLC Input Module acquires limit‑switch and safety‑device feedback signals for conveyor systems inside manufacturing facilities.
Water‑Wastewater Treatment Plant I/O System. The Allen‑Bradley 1756‑IB16 Digital PLC Input Module monitors pump and valve auxiliary feedback contacts for water‑process automation cabinets.
Legacy ControlLogix System Spare Replacement. The Allen‑Bradley 1756‑IB16 Digital PLC Input Module is stocked as spare replacement unit for existing 24V DC input‑based ControlLogix automation installations.
Industrial Automation Turnkey Project Field Signal Interface. The Allen‑Bradley 1756‑IB16 Digital PLC Input Module serves as standard DC discrete input interface for ControlLogix‑based automation solutions.
1756-IB16 Certifications & Compliance
The Allen‑Bradley 1756‑IB16 Digital PLC Input Module holds the following international safety and compliance approvals:
• UL listed — North‑American industrial control equipment safety approval.
• CE certification — European industrial control equipment safety and EMC compliance.
• C‑Tick marked — EMC compliance for Australian and New Zealand markets.
• Class I Division 2 certified — Suitable for installation in specified hazardous classified locations.
All modules supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1756‑IB16 Digital PLC Input Module unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
