SIMATIC PCS 7 (V8.1) Redundant Fault-Tolerant Control System
The Redundant Fault-Tolerant Control System in SIMATIC PCS 7 (V8.1) is a high-availability automation solution engineered to eliminate single points of failure
and ensure uninterrupted process operation across industrial environments. Built on a modular, system-wide redundancy concept, it integrates fault-tolerant
components at all automation levels—including management (OS servers, BATCH servers, Route Control servers), process (S7-400H automation systems), and
field (distributed I/O, fieldbuses)—with redundant hardware, communication paths, and software synchronization. Core to its design is the hot standby
redundancy principle, where paired components (e.g., CPUs, servers, I/O modules) operate in parallel: the active component executes control tasks while the
standby component maintains real-time data synchronization, enabling bumpless failover within milliseconds if a fault occurs. The system supports diverse
redundant configurations, such as dual-ring industrial Ethernet (terminal bus/plant bus) with Media Redundancy Protocol (MRP) or Parallel Redundancy Protocol
(PRP), redundant PROFIBUS DP/PA/FOUNDATION Fieldbus, and dual I/O modules/interfaces for distributed devices like ET 200M. Complemented by advanced
self-diagnostics, runtime component replacement, and seamless software updates without process interruption, it delivers exceptional reliability (minimizing
MTTR) and compliance with industrial safety standards, making it ideal for mission-critical applications in oil and gas, power generation, and chemical
processing where downtime carries significant operational and financial risks.
Practical Implementation, Failure Handling, and Runtime Maintenance of SIMATIC PCS 7 (V8.1) Redundant Fault-Tolerant Control
System
The practical implementation of the SIMATIC PCS 7 (V8.1) Redundant Fault-Tolerant Control System involves a structured configuration workflow spanning
hardware setup, software integration, and network redundancy, starting with the deployment of S7-400H automation systems featuring dual CPUs, redundant
power supplies, and synchronization modules connected via fiber-optic cables (up to 10 km), paired with distributed I/O devices like ET 200M/ET 200iSP
equipped with redundant interface modules (IM 153-2/IM 152-1) and I/O modules that require identical model and firmware versions for seamless redundancy;
network configuration focuses on establishing fault-tolerant terminal/plant buses using ring topologies with SCALANCE X switches supporting Media
Redundancy Protocol (MRP) or Parallel Redundancy Protocol (PRP), and redundant fieldbuses (PROFIBUS DP/PA, PROFINET, FOUNDATION Fieldbus) configured
via gateways such as Y-Link, DP/PA Link, and FF Link to integrate non-redundant devices while maintaining fault tolerance. Failure handling mechanisms are
designed for bumpless failover: in the event of a master CPU, bus component, or I/O module failure, the standby component automatically takes over
within milliseconds, with system tags like "@RM_MASTER" and "@RM_MASTER_NAME" updating to reflect master/standby status, and diagnostic messages
immediately alerting operators via OS clients; for server-level failures (OS/BATCH/Route Control), redundant partners assume control with automatic client
reconnection, gap-free data archiving, and post-recovery synchronization of tag logging and alarm logging data. Runtime maintenance is facilitated by support
for hot-swapping of critical components (CPUs, power supplies, I/O modules, synchronization cables) without process interruption, while plant changes and
software updates can be performed via the CiR (Configuration in Runtime) function and a phased update workflow for redundant servers/clients—ensuring
continuous process operability by first updating standby servers, then associated clients, downloading changes to automation systems, and finally updating
master servers. Advanced self-diagnostics further enhance reliability by automatically disconnecting faulty servers from terminal/plant buses and triggering
restarts if the redundant partner is operational, complemented by maintenance station integration for real-time redundancy status visualization and asset
management.
Invensys Triconex3700AAnalog Input Module
The Invensys Triconex 3700A Analog Input Module is a high-reliability, safety-critical I/O component engineered specifically for integration into the Triconex
Triple Modular Redundant (TMR) fault-tolerant control system, designed to deliver accurate and uninterrupted analog signal acquisition for mission-critical
industrial applications. Leveraging the TMR architecture’s core principle of triple modular redundancy and 2-out-of-3 (2oo3) voting logic, this module
eliminates single points of failure, ensuring consistent performance even in harsh operating environments such as oil and gas processing, petrochemical plants,
power generation facilities, and offshore platforms. It supports a wide range of industrial analog input signals (typically 4-20 mA, 0-10 Vdc, thermocouples, or
RTDs) with high resolution and low drift, enabling precise measurement of critical process variables including pressure, temperature, flow, and level. Equipped
with built-in self-diagnostic capabilities, the 3700A continuously monitors channel integrity, signal quality, and module health, providing real-time fault alerts
that integrate seamlessly with the Triconex system’s configuration and diagnostic software for rapid troubleshooting and maintenance. Compliant with IEC
61508 functional safety standards and certified for SIL 3 (Safety Integrity Level 3), this module meets the strict reliability requirements of Safety Instrumented
Systems (SIS), Emergency Shutdown Systems (ESD), and critical process control loops, while its rugged design withstands extreme temperatures, voltage
fluctuations, and electromagnetic interference (EMI) to ensure long-term operational stability in demanding industrial settings.
Invensys Triconex3805EAnalog Output Module
The Invensys Triconex 3805E Analog Output Module is a safety-critical, high-performance I/O component specifically designed for seamless integration into the
Triconex Triple Modular Redundant (TMR) fault-tolerant control system, engineered to deliver precise, uninterrupted analog signal output for mission-critical
industrial processes. Built on the TMR architecture’s foundational 2-out-of-3 (2oo3) voting logic and triple modular redundancy, this module eliminates single
points of failure, ensuring reliable operation even in harsh and high-risk environments such as oil and gas processing, petrochemical plants, nuclear and fossil
fuel power generation facilities, and offshore platforms. It supports a range of standard industrial analog output signals (typically 4-20 mA or 0-10 Vdc) with low
drift and high linearity, enabling accurate control of critical final control elements including valves, actuators, and regulators. Equipped with robust built-in self-
diagnostics, the 3805E continuously monitors module health, signal integrity, and communication status, providing real-time fault notifications that integrate
seamlessly with the Triconex system’s diagnostic software for rapid troubleshooting and minimized downtime. Compliant with IEC 61508 functional safety
standards and certified for SIL 3 (Safety Integrity Level 3), the module meets the stringent reliability requirements of Safety Instrumented Systems (SIS),
Emergency Shutdown Systems (ESD), and critical process control loops. Its rugged design withstands extreme temperatures, voltage fluctuations, and
electromagnetic interference (EMI), while supporting redundant communication with Triconex controllers to maintain data integrity—making it an indispensable
component for safety-focused, high-availability industrial automation solutions.

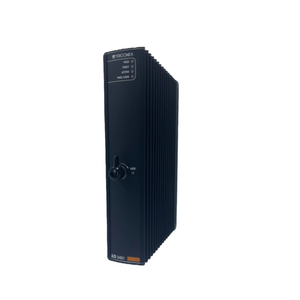

Invensys TriconexAO3481Communication Module
The Invensys Triconex AO3481 Communication Module is a high-reliability, fault-tolerant communication component engineered exclusively for integration into
the Triconex Triple Modular Redundant (TMR) control system, designed to enable secure, seamless data exchange between Triconex controllers, I/O modules,
and third-party industrial systems in mission-critical applications. Leveraging the TMR architecture’s core principles of triple modular redundancy and 2-out-of-
3 (2oo3) voting logic, this module eliminates single points of failure in communication pathways, ensuring uninterrupted data transmission even in harsh
industrial environments such as oil and gas processing, petrochemical plants, power generation facilities, and offshore platforms. It supports a range of industry-
standard communication protocols (e.g., MODBUS, HART, PROFIBUS, Ethernet/IP) to facilitate interoperability with diverse automation components, including
sensors, actuators, SCADA systems, and other control platforms. Equipped with built-in self-diagnostic capabilities, the AO3481 continuously monitors
communication link integrity, protocol performance, and module health, providing real-time fault alerts that integrate seamlessly with the Triconex system’s
diagnostic software for rapid troubleshooting and minimized downtime. Compliant with IEC 61508 functional safety standards and certified for SIL 3 (Safety
Integrity Level 3), the module meets the stringent reliability requirements of Safety Instrumented Systems (SIS), Emergency Shutdown Systems (ESD), and critical
process control loops. Its rugged design withstands extreme temperatures, voltage fluctuations, and electromagnetic interference (EMI), while redundant
communication pathways ensure data integrity and system availability—making it a critical enabler for safety-focused, interconnected industrial automation
solutions.
