When a Schneider Quantum 140 CPU or Ethernet module fails, the plant doesn’t just lose a component—it loses a segment of the control system. Sourcing a replacement 140CPU11302 or 140NOE77100 quickly and correctly is the difference between a scheduled maintenance window and an extended unplanned outage. I’ve supported enough global clients to know that the real risk isn’t the module cost; it’s the lost production time while waiting for a part that may not arrive with the right firmware or in genuine condition. This article addresses the technical and supply‑chain realities of sourcing these specific modules, from compatibility checks to supplier evaluation, so you can restore operations without creating a second problem.
What Makes 140CPU11302 and 140NOE77100 Critical in a Quantum 140 Rack?

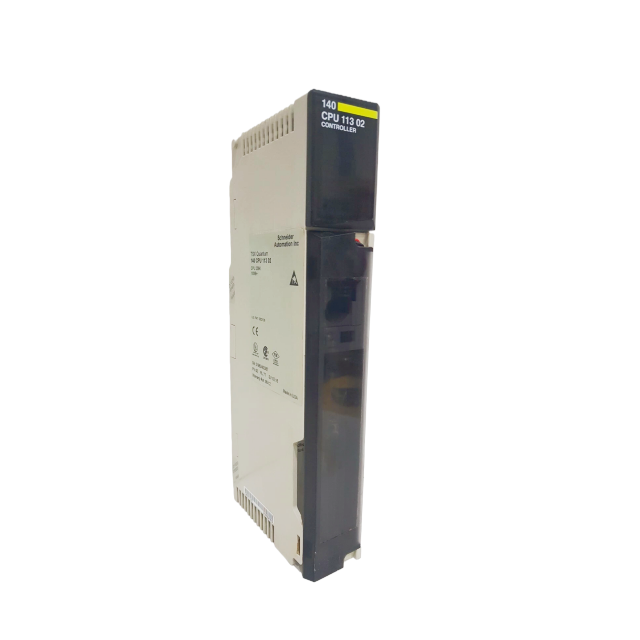

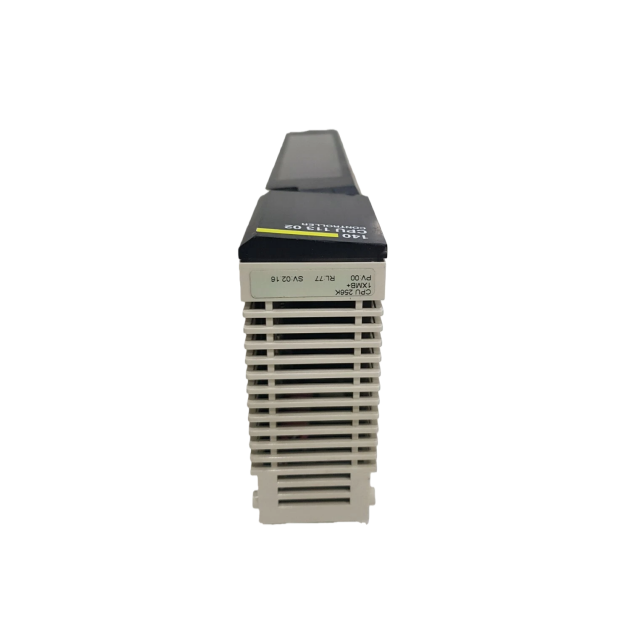

A Quantum 140 system depends on two modules that rarely get attention until a replacement is needed: the CPU and the network interface. The 140CPU11302 is the main processor for the rack; it executes the program logic, handles I/O scanning, and manages communication with other modules. Firmware revision, onboard memory, and the type of PCMCIA memory card it expects all matter. If the replacement CPU arrives with a different firmware version than what the existing program was built for, you may face a download‑and‑reload cycle that can add hours to the recovery.

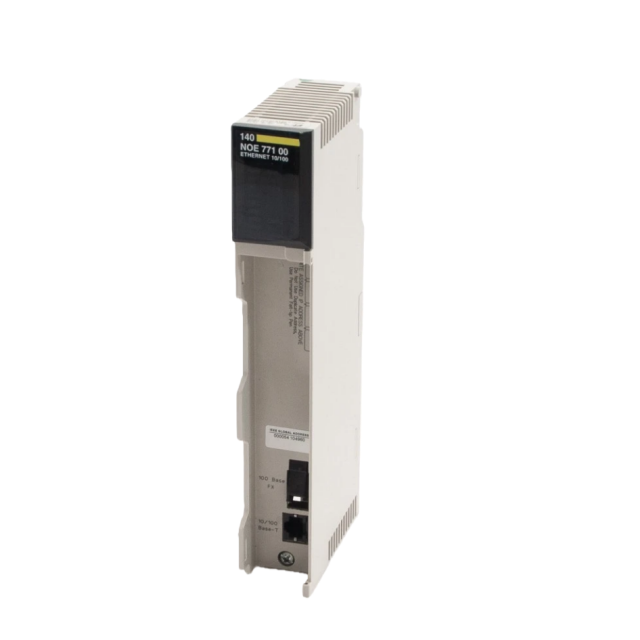

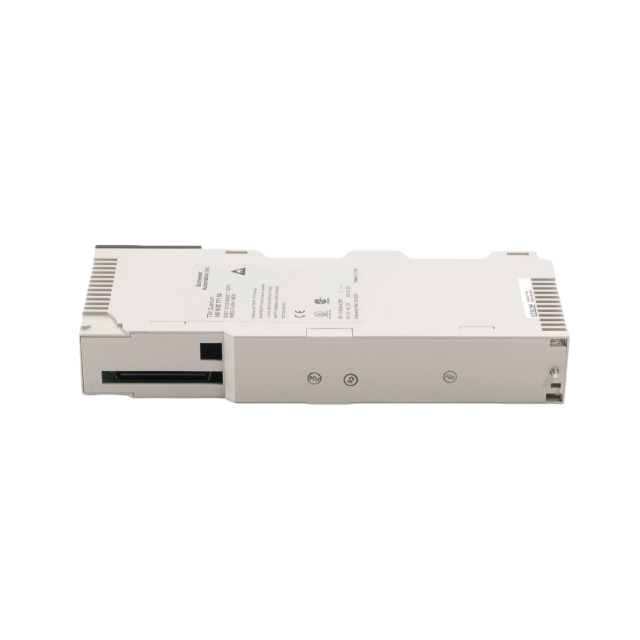

The 140NOE77100 is an Ethernet communication module that gives the Quantum PLC a 10/100 Mbps TCP/IP interface, supporting Modbus TCP and other protocols. It is used for peer‑to‑peer messaging between Quantum racks and for integrating the system into plant‑wide SCADA networks. A replacement that has a different IP configuration or an older firmware revision can be difficult to bring online without re‑commissioning the network slot—something a procurement engineer might not discover until the module is in the rack and a network timeout occurs.
From our work with other 140‑series modules like the 140CPU67060, 140DDI85300, and 140CPS11420, we understand that Quantum 140 parts retain their exact addressing and slot‑level compatibility requirements. The same applies to the CPU and NOE modules; the part number must be matched and the module health verified before installation. This is not a situation where a generic “untested” part is worth the risk.
Sourcing Challenges: Lead Times, Firmware Compatibility, and Counterfeit Risk
The challenges of sourcing 140CPU11302 and 140NOE77100 modules break into three categories, each of which can independently delay a restart.
Lead time variability. OEM‑new units can have lead times ranging from several weeks to several months depending on the region and the factory backlog. For a plant running a continuous process, that kind of wait is not viable. Secondary market lead times are measured in days, but the variation comes from whether the module is in stock and whether the supplier can test and ship it immediately. We consistently hold a buffer inventory of Quantum 140 modules specifically to absorb this variability; when a customer needs a 140CPU11302, our question is not whether we have the part but how fast they need it.
Firmware compatibility. A 140CPU11302 must match the firmware level of the failed unit. If the plant’s program was built for a specific revision, the replacement needs to either match it or be flashed to it before insertion. A supplier that cannot verify the firmware revision at the time of order is selling you a lottery ticket, not a replacement part. The same logic applies to the 140NOE77100, where the flash memory version determines the supported Modbus TCP feature set. We verify and match these details before shipping because a mismatch can turn a simple module swap into a commissioning exercise.
Counterfeit and sub‑standard modules. Schneider Electric’s genuine modules carry traceable date codes and board-level identifiers. Modules that have been re‑marked, repaired with non‑OEM components, or pulled from scrapped systems without testing can look acceptable but fail under load. The cost of a $200 counterfeit module can be a $40,000 downtime event. We only supply modules that have been sourced through controlled channels and tested to the OEM specification; when we cannot verify a module’s history, we do not sell it. This is a position we take from hard experience: the savings from a questionable part never offset the production risk.
How to Evaluate a Schneider Quantum 140 Parts Supplier
When you are under time pressure, it is easy to accept the first supplier who says “in stock.” A few minutes of verification can prevent a wrong module from reaching your site.
Ask for the exact firmware revision and board revision of the module being shipped. If the supplier cannot provide both within the same business day, the part probably is not in their hands yet.
Request photos of the actual module, not stock images. Genuine Schneider modules have consistent labeling, and a practiced eye can spot re‑marked labels.
Confirm the supplier’s test procedure. A module that is only visually inspected carries more risk than one that runs in a test rack for at least a few hours. We run every 140‑series module through a powered‑up rack test that includes I/O loopback where applicable and communication link verification.
Check the shipping method and documentation. For international orders, commercial invoices must show the correct HS code and country of origin to avoid customs delays. Our logistics team uses the correct codes for PLC modules (8537.10) and provides pre‑clearance documentation to keep delivery times predictable.
The table includes reference modules to show that a supplier with genuine breadth can also support the specific part numbers you need. If a supplier only lists the two modules you are looking for and nothing else from the Quantum 140 family, that is worth questioning.
Ensuring Fast Global Delivery and Technical Support
Speed of delivery is about inventory position, logistics infrastructure, and customs readiness—three things that cannot be improvised.
For urgent orders, we keep the most‑requested Quantum 140 modules in inventory at our hub and can dispatch the same day if the PO is confirmed before the local cutoff. We use DHL and FedEx for international express shipments and can provide tracking within hours. For plants in regions with strict import regulations, we pre‑prepare the necessary EUA and origin certificates so the module does not sit in a bonded warehouse while production is down.
Technical support is equally time‑critical. When a module arrives, the plant engineer may need help confirming the firmware match or understanding the slot‑addressing requirements. An email to chen@htechplc.com or a call to +86‑181‑5013‑7565 connects them to someone who can walk them through the first power‑up and check the system status LEDs. That level of support matters because a module in a box solves nothing; it has to be installed and communicating before the clock stops on the outage.
What to Expect After Ordering: Testing, Warranty, and Integration
After the module leaves our facility, the timeline is in the courier’s hands, but the readiness is on ours. Every 140CPU11302 we send includes a test summary that lists the firmware revision, the test rack used, and the pass/fail status of the main communication and I/O scan tests. For the 140NOE77100, the summary includes the MAC address, IP configuration status, and a Modbus TCP loopback result. You do not have to ask for this; it is included as a standard delivery document.
Warranty terms: 12 months from the date of delivery, covering defects in materials and testing failures. If a module fails during that period, we replace it with a pre‑tested unit and handle the return shipping. This is not a conditional warranty tied to installation conditions; we know industrial environments are harsh, and the expectation is that the module works as specified.
If your program involves mixed‑vendor control systems where the Quantum 140 is integrated with other PLC platforms, it is worth confirming the network configuration parameters before ordering. Share your part number and quantity to chen@htechplc.com, and we can verify compatibility against the module revision we hold in stock. The goal is to get the module to you with the setup already aligned to your plant, not after a round of emails.
Common Questions About Schneider Quantum 140 Spares
How can I verify a 140CPU11302 is genuine before installation?
Look for the Schneider Electric logo printed on the label and the board‑level part number that matches the sticker. A genuine 140CPU11302 has a specific layout of diagnostic LEDs and a serial number that can be cross‑referenced with Schneider’s product database. If the module has glue residue, misaligned components, or a label that appears to be printed on a different substrate, it may be a refurbished or counterfeit unit. In programs we’ve supported, we always provide clear photos of the actual module before shipping so the end user can perform that check.
What is the typical lead time for a 140NOE77100?
It depends on whether the module is ready for same‑day dispatch or needs to be sourced. From our stock, we can ship within 24 hours of a confirmed purchase order, and international express delivery usually takes 3‑5 business days to most industrial regions. If the module must be located through the supply network, we provide a specific availability window before the order is placed; we do not quote generic “2‑4 weeks” without verifying the actual location.
Can I use a used 140CPU11302 if it passes a visual inspection?
A visual inspection alone does not catch latent failures like weak internal power supplies, corrupted flash sectors, or intermittent communication faults. We have seen modules that looked perfect externally but would fail after being powered on for a few hours in a hot rack. Unless the supplier can show a powered‑up test run and confirm the firmware revision matches your backup, a used module is a gamble. If you decide to go that route, factor in the cost of a possible second failure during the restart window.
What is the difference between the 140CPU11302 and other Quantum CPUs?
The 140CPU11302 is a specific performance tier with a defined amount of user memory and a particular set of supported instructions. Lower model numbers generally have less memory and slower scan times; higher models may support additional communication ports or have onboard Ethernet. The exact part number must match your program because the offline build links to a specific processor type. Substituting a different CPU, even a faster one, can cause a configuration mismatch error that requires a full program download—something you want to avoid if the machine is down.
How do I know if my plant’s Ethernet network will work with a replacement 140NOE77100?
The 140NOE77100 supports 10/100 Mbps auto‑negotiation and Modbus TCP, but the IP address assignment method (BOOTP, fixed, or DHCP) and the subnet mask must match the plant network design. If your original module was configured with a static IP and the replacement arrives in DHCP mode, it will not communicate until you reconfigure it through the Quantum programming software. Share your network requirements when you request the part, and we can configure the module before shipping so that it powers up ready to connect.
