When a TMR safety controller faults and your site’s spare parts list shows one of these numbers—3008, 3503E, 3625, 3700A, 3805E—you need a supplier that understands the system, not just a list of model codes. At Joyoung International Trading, we have sourced, verified, and delivered Triconex TRICON modules for more than a decade. This article walks through what each of these parts does, where specification gaps cause headaches, and the checks we apply before any module leaves our warehouse.
What a Triconex TRICON ESD Spare Parts Inventory Must Cover

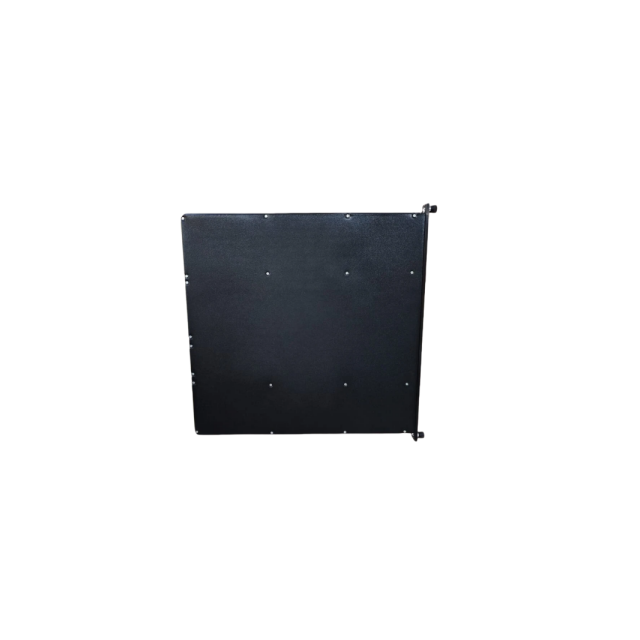

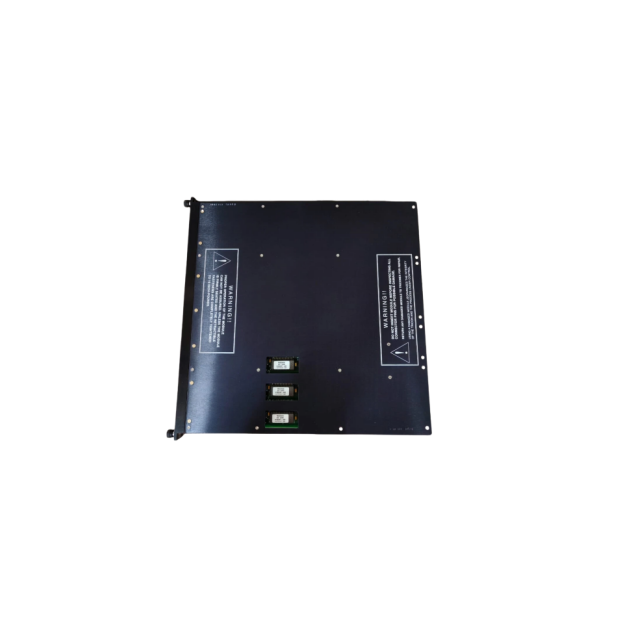

A Triconex safety system uses a triple-modular redundant (TMR) architecture; one channel can fail without losing the safety function. Because of that voting logic, a “spare” module is not always a simple plug‑and‑play replacement. We have seen plants order a 3503E digital output module only to find the field termination assembly expects a different board revision, delaying the restart by days.
A focused spare parts holding typically includes at least one of each primary module type within the chassis that runs your critical safety loop. The models covered here appear repeatedly in site spares lists because they handle core I/O and communication functions.
Handles peer‑to‑peer safety data; requires a mate in the remote chassis. Running firmware must be matched on both ends.
If a project has modified any termination board wiring, a direct replacement of a module alone may not clear the fault. We have supported a gas processing plant where a 3503E slot worked electrically but failed the loop test because the output field loop connector had been swapped during a previous expansion project. The fix was simple once we reviewed their panel wiring drawing—but until that happened, the technician assumed the new module was defective.
Revision Mismatches That Block a Successful Spare Parts Installation

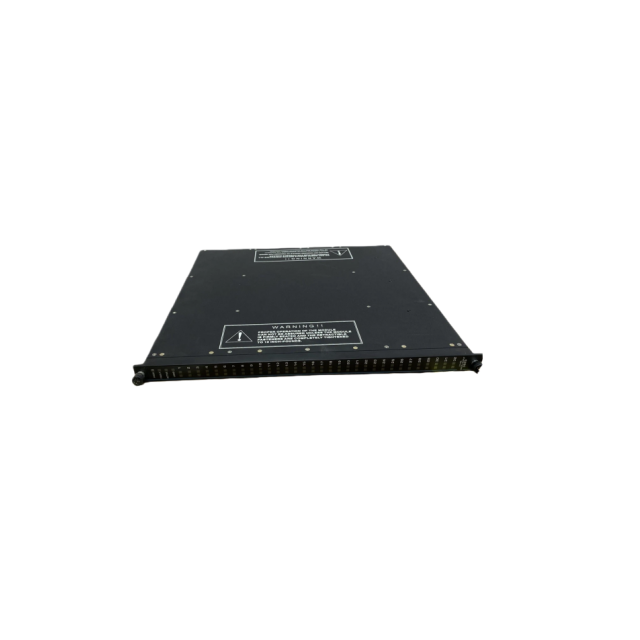

One of the most common mistakes I see in TRICON spare parts procurement is ordering a module by its base part number and ignoring the revision suffix. For example, a 3625 with a different input range jumper option can trip the input self‑test unless the Tristation configuration knows about that hardware variant.
Another area is the 3700A SAM module. Older firmware versions do not support full HART pass‑through on all channels; a site that upgrades the DCS interface may suddenly need a SAM with a later firmware release. We cross‑check the firmware level against the system revision before we quote, and we only ship the version the configurator requires.
These are not theoretical edge cases. We keep a log of revision compatibility issues across TRICON models and use that log to catch mismatches before packing. If you are unsure, send us the job‑specific Tristation build report and we will verify the exact module identifiers against what is in our inventory.
Verifying Triconex Spare Parts Before They Ship: The Steps That Matter
A visual inspection of the module label does not protect you against a stored firmware fault or a damaged backplane connector. Our verification sequence for TRICON modules includes three checks that go beyond the photos many suppliers offer.

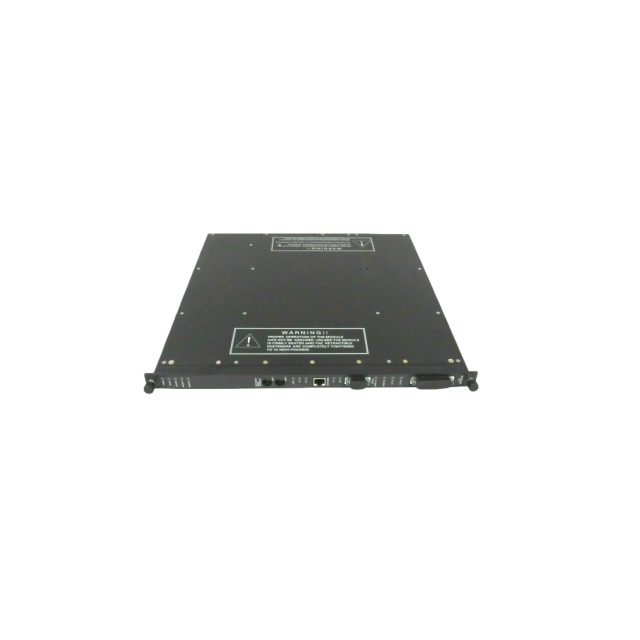

First, we run a hardware self‑test on every single‑channel module that can be powered up standalone; a 3008 processor needs a backplane and at least one I/O module to complete its POST, so we test those as a set when ordered together.
Second, we inspect the board revision, firmware label, and the connector pins under magnification—I have seen bent pins on modules that were reportedly “new in original packaging” because the box had been dropped during storage.
Third, for communication modules like 3805E, we read out the firmware version and compare it against the project’s system configuration if the buyer shares that information. A mismatch here will not cause a physical fit problem, but it will prevent the peer‑to‑peer safety link from coming online.
The result is that when a module arrives at your plant, the commissioning team spends time integrating it, not debugging it.
How a Fast‑Response Spare Parts Supplier Keeps a TRICON System Online
We serve oil and gas, petrochemical, and power sites across multiple continents. The urgency is always the same: a safety system in fault reduces the plant’s risk‑reduction factor until it is restored. When a TRICON 3008 processor or a 3503E output module is needed, the procurement clock starts immediately.
Our warehouse carries an inventory of Triconex modules that rotates quickly. For a high‑demand part like the 3805E, we will often have revision‑specific units ready to ship within 48 hours. For less common modules, we pull from our global network of tested surplus and new‑surplus stock, with shipping arranged the same day we confirm payment.
A recent case involved a floating production storage and offloading (FPSO) vessel that lost a 3700A SAM module. The replacement had to match the existing firmware to talk to the legacy Tristation version. Our team isolated the correct board revision from our inventory, ran the firmware verification, and air‑freighted the unit to the offshore support base in under 72 hours. The customer’s safety availability threshold was never breached.
When lead time is measured in production hours, you need a supplier that treats your shutdown as its own.
If Your Program Demands Precise Module Revision Control
If your site stores only base part numbers in the CMMS, the first step we recommend is a revision audit. Send us the list of Triconex modules you have installed today, and we will match them against the available replacements—including firmware level and termination board compatibility. Without that cross‑reference, even a genuine module can generate a configuration fault.
Reach our engineering support team at chen@htechplc.com or call +86-181-5013-7565 with your part numbers and required quantities. We respond with a confirmed revision‑specific quote within one business day.
Common Questions From Triconex Spare Parts Buyers
Does a brand‑new 3008 processor need a license key to work in our chassis?
It depends on what the Tristation project was originally licensed for. A replacement 3008 shipped from Triconex often requires a new license key imported via the engineering station. We have supplied 3008 modules that already contained a valid license for the target system because the original site had obtained the key previously. In cases where no license is available, we coordinate with the customer to obtain one through the licensed distributor channel. Share your system serial number and we will confirm the licensing status before we ship.
Can a 3503E replace an older 3503 without any wiring changes?
Not automatically. The 3503E uses a higher‑density termination panel that may require a different field cable connector. In plants where the original 3503 was wired to a screw‑terminal panel, you will need to adapt the field wiring or swap the termination board. I have seen projects where the E suffix module was plugged in and the loop check failed because the termination board mapping was offset. We always ask for a photo of the existing panel part number before confirming a cross‑reference.
What is the difference between a 3700A and a 3700 without suffix?
The 3700A adds enhanced HART pass‑through and extended serial communication diagnostics. From a physical fit perspective, they occupy the same slot. However, the Tristation project must be configured for the correct SAM type. If your project still uses an older TriStation version that does not support the A version, the 3700A will not connect. Send us your TriStation version and we will confirm which SAM module revision is compatible.
How do you handle export control restrictions on Triconex safety hardware?
Triconex safety hardware often carries export classification numbers under local and international regulations. Before we ship, we verify the end‑user and end‑use against the applicable export control lists. This is not a formality; we have declined orders where the documentation did not support a legitimate industrial end‑use. We will guide you through the required end‑user statement and ensure the shipping documentation matches the regulatory requirements.
How quickly can Joyoung deliver a 3805E communication module to an offshore platform?
For a 3805E module in our routine stock, we can dispatch the same business day and use air freight to the nearest shore base. We have delivered to an FPSO in Southeast Asia in under 72 hours from order confirmation. The exact timeline depends on customs clearance at the destination, but we manage the export paperwork to minimize delays. Share your delivery coordinates and required quantity, and we will confirm the fastest air freight routing.
