When a Honeywell Series 8 C300 analog input module fails, every hour of downtime cuts directly into production output. The 8C-PAIHA1 high‑level analog input and 8C‑PAIN01 standard analog input modules are the front‑end of the control system, and losing even one channel can blind operators to critical process signals. Engineers frequently find that ordering a replacement through the official OEM channel means waiting weeks — a delay that many plants simply cannot absorb. In my ten‑plus years of handling industrial spare parts globally, I’ve learned that long lead times are rarely a hard unavoidable constraint. Independent suppliers like Joyoung International Trading stock these modules, test them before shipping, and can often deliver within a few working days. However, bypassing the default OEM path demands strict discipline: you must verify hardware revision, firmware level, and the supplier’s testing process before you place the order.
What the 8C‑PAIHA1 and 8C‑PAIN01 Modules Do in a C300 System

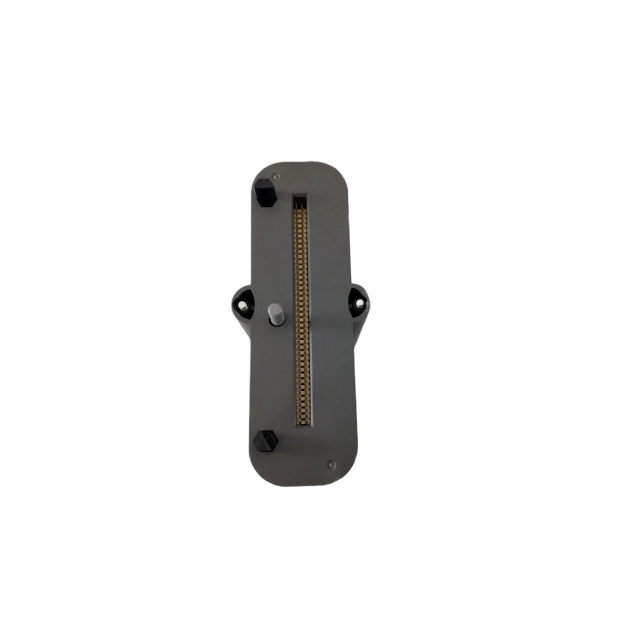

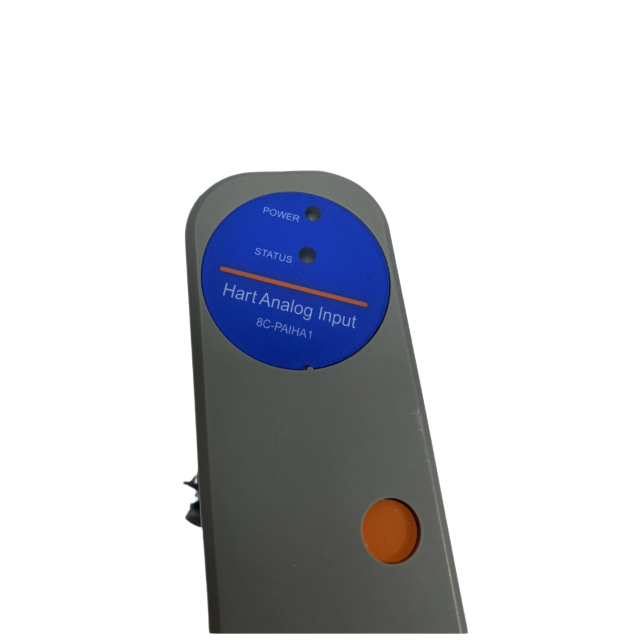

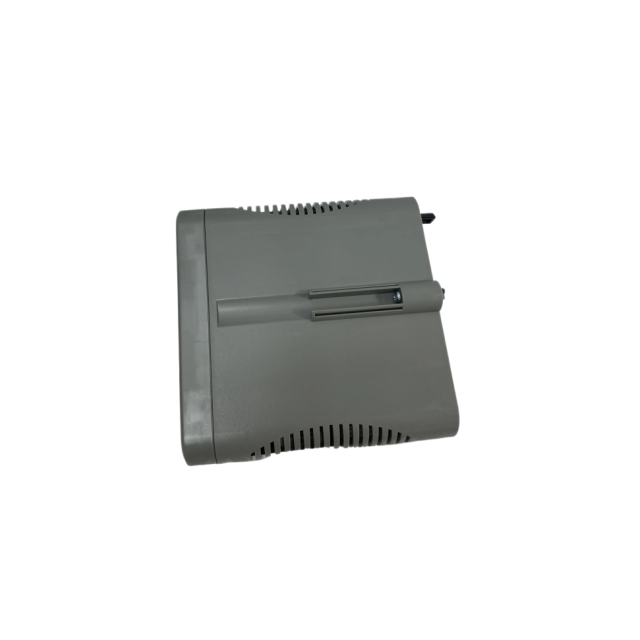

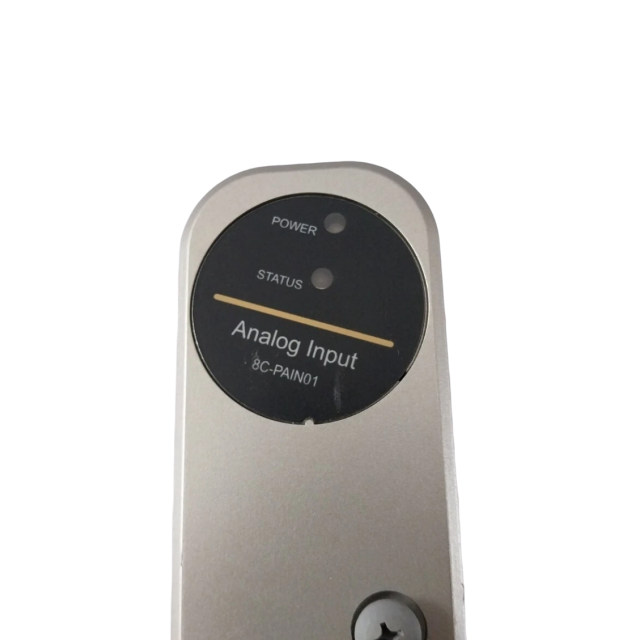

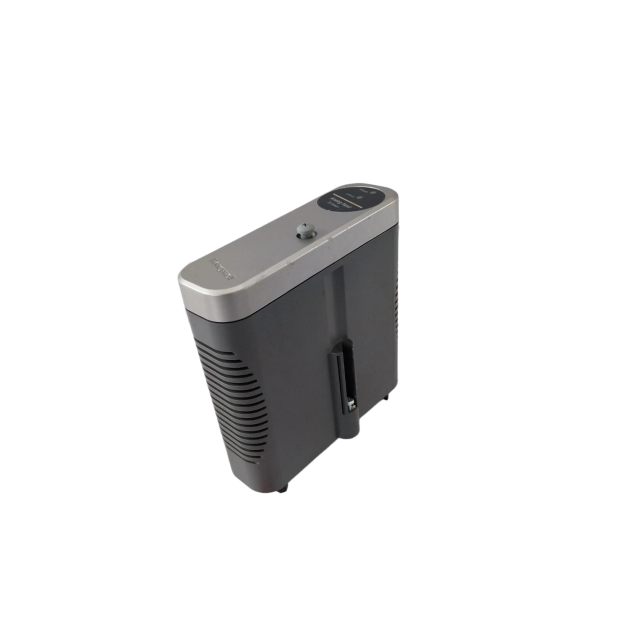

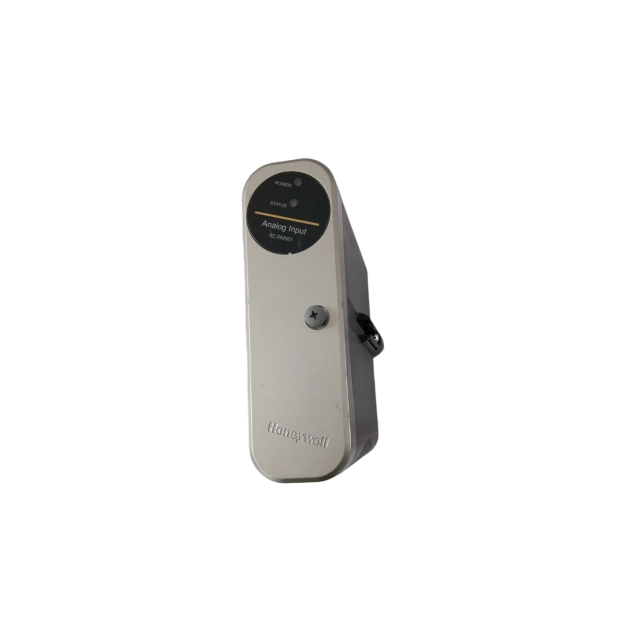

Both modules are 16‑channel analog input slices that plug into the Honeywell Series 8 I/O rack. The 8C‑PAIHA1 handles high‑level signals (±20 mA, ±10 V) and supports HART pass‑through, so it is often chosen where smart field instruments need remote configuration. The 8C‑PAIN01 is a baseline analog input module, commonly used for 4‑20 mA loops, and while it does not carry HART, it covers a large share of general‑purpose signal acquisition. They share the same form factor and termination style, but the field‑wiring arrangement differs: the PAIHA1 offers differential input pairs that help suppress common‑mode noise on longer cable runs, whereas the PAIN01 typically lands single‑ended connections.
Misunderstanding those differences can lead to a module that is electrically correct but unable to deliver the required signal quality. I’ve received calls from clients who tried to swap a PAIN01 into a slot originally designed for HART‑capable PAIHA1 and then could not access field‑device diagnostics. The module fit and the controller accepted it, but the hidden limitation only surfaced during commissioning.
Specifications That Dictate Whether a Replacement Will Work
Matching the part number is the first step, but the part number alone does not guarantee seamless integration. Every Series 8 C300 I/O module carries a hardware revision letter (stamped on the label as “HW Rev”) and a firmware version visible through Experion configuration tools. When a replacement module differs in revision, you may encounter configuration mismatch faults or subtle channel‑range limits.
Before ordering, ask the supplier for three things: the exact hardware revision, the installed firmware version, and a clear photo of the module label. If the firmware is older than what your controller requires, the module will go unrecognized; if it is newer, the system may accept it but you might need to load the corresponding device firmware package. I’ve seen older R3 hardware revisions of the PAIHA1 work perfectly with firmware R310, while a later R5 board with the same firmware occasionally threw a configuration mismatch until the controller was cycled.
A reliable supplier will already have this information captured for every module in stock. If the answer is “we’ll check when you order,” you are gambling with your timeline.
Specification
8C-PAIHA1
8C-PAIN01
Signal type
High‑level ±20 mA, ±10 V
4‑20 mA, 1‑5 V
Channels
16 single‑ended / 8 differential
16 single‑ended
HART pass‑through
Yes
No
Resolution
16‑bit
16‑bit
Typical terminal
Screw‑clamp, 40‑pin
Screw‑clamp, 40‑pin
Where the Sourcing Delays Really Come From — and How to Escape Them
OEM lead times for Honeywell C300 analog input modules can easily exceed eight to ten weeks when the factory is backlogged. Worse, if the module is listed as “mature” or “end‑of‑life,” the official channel may only offer an exchange program, which still ties up capital while you wait. That lag forces maintenance teams to keep expensive spares on the shelf or risk extended outages.
A different supply model exists: specialty independent distributors that hold tested, genuine Honeywell modules in stock. At Joyoung, we routinely carry Series 8 analog input parts, alongside a wide range of Honeywell C300 modules such as the CC‑PDO801 discrete output card and the 51402497-200 analog input termination panel. Having that breadth means we are not dependent on a single factory batch — we pull from surplus channels, decommissioned systems, and new‑old‑stock inventory, then run them through a controlled test bench before they go out the door.
If your program has specific environmental ratings or requires ATEX‑certified modules, this is the point where you need to confirm the exact variant with your supplier. Sharing your controller firmware revision and the slot location upfront avoids discovering an incompatibility the day of installation. Reach us at chen@htechplc.com — a specification mismatch caught early saves an entire shift of lost production.
How to Confirm a Module Is Genuine and Ready for Service
The presence of a Honeywell label is not enough. Counterfeit series‑C300 modules do circulate, and they can pass a visual inspection while containing mismatched internal boards or components that will drift after a few thermal cycles. A legitimate supplier should be willing to show you a high‑resolution photo of the actual unit, including the serial number label and the QR code, before you pay.
Beyond visual proof, insist on a test record. A 16‑channel analog input card can be verified quickly on a test rack by injecting known mA and voltage signals across all channels and confirming correct readings in a Honeywell configuration environment. At Joyoung, every 8C‑PAIHA1 and 8C‑PAIN01 module we send out goes through a multi‑point signal test, documented in a pre‑shipment report that leaves no ambiguity about its condition. We also take the extra step of inspecting the termination block screw torque and checking for bent backplane pins — details that matter when the part arrives at a remote site.
When I ask a potential supplier for a test record and they reply with “we guarantee it works,” I move on. A guarantee without a traceable measurement is just a promise.
What a Well‑Managed Spare Parts Purchase Looks Like
A smooth transaction starts with a short technical discussion, not a shopping‑cart checkout. You provide the exact module model, the required revision range, and your target delivery window. The supplier confirms stock, sends the photo and test report, and arranges export packaging if the site is overseas. Freight options that include priority air courier or customs‑cleared door‑to‑door delivery cut out the hidden administrative delays that eat up as much time as the actual manufacturing lead time.
Once the module arrives, I recommend installing it first with only a few field loops connected and running a loop‑check for at least an hour while monitoring the controller’s diagnostic status. That small validation step can catch a channel‑to‑channel variance that might otherwise go unnoticed until a critical process trip.
Our team at Joyoung handles hundreds of Honeywell spares each quarter, and we maintain traceability from the moment we receive a module to the moment it leaves our warehouse. If you need a PAIHA1 or PAIN01 on short notice, share your part number and required firmware revision at chen@htechplc.com or call +86‑181‑5013‑7565. We will confirm stock, module revision, and an estimated delivery date within one business day.
Real Questions Engineers Ask When Sourcing These Modules
Is the 8C‑PAIHA1 a direct replacement for a failed PAIN01 — or vice versa?
The short answer is no, not without verifying the signal type and HART requirement. Physically they occupy the same slot and will be detected by the controller, but the PAIN01 lacks the high‑level input range and HART pass‑through. If your field device is a HART‑enabled transmitter, swapping in a PAIN01 means you lose diagnostic access even though the process variable still reads correctly. For a simple 4‑20 mA loop with no Smart features, either module can work if you observe the input range limits.
We’ve run into “configuration mismatch” errors with a replacement module. What triggers that?
When the firmware version on the module does not match the version expected by the Experion C300 controller, the system flags a configuration mismatch and refuses to run the channel. I’ve encountered this most often when the replacement module came from a different system generation — for instance, a module pulled from an earlier Experion release and installed in a newer controller without updating the firmware. The fix is to load the correct device firmware kit through the Experion engineering tools, or to obtain a module already flashed with the compatible version. That is one reason we verify firmware revision before shipment.
What is the typical delivery time for an 8C‑PAIHA1 or PAIN01 from Joyoung?
For stock items, we can usually dispatch within 24 to 48 hours after order confirmation. International shipments via priority air freight normally reach most destinations in three to five working days, depending on customs clearance. If your schedule requires a specific arrival date, let us know when you inquire; we can often hold stock and coordinate a timed delivery.
If the exact hardware revision isn’t available, how do you proceed?
It depends on the controller software revision and the I/O slot configuration. In many cases, a later hardware revision is backward‑compatible as long as the firmware is aligned. Our engineers will cross‑reference your controller details with the available module inventory and advise whether an alternative revision will work without a firmware update. Should the only available module require a firmware change, we’ll explain the steps clearly before you commit. If your program has tight revision control, sharing your approved hardware rev list with us at chen@htechplc.com is the fastest way to confirm availability.
