1762-IQ16 Advantages
The Allen‑Bradley 1762-IQ16 16-point digital DC input module stands out from comparable MicroLogix expansion modules in several key areas.
High density 16-channel DC input design. The Allen‑Bradley 1762-IQ16 16-point digital DC input module provides 16 discrete DC input points in a compact form factor, the Allen‑Bradley 1762-IQ16 16-point digital DC input module saves cabinet space for small machine projects.
Opto-isolated input channels. The Allen‑Bradley 1762-IQ16 16-point digital DC input module adopts optical isolation between field side and controller side, the Allen‑Bradley 1762-IQ16 16-point digital DC input module reduces electrical noise interference and protects the host controller.
Support sink and source 24V DC input signals. The Allen‑Bradley 1762-IQ16 16-point digital DC input module works with both sink and source type sensors, the Allen‑Bradley 1762-IQ16 16-point digital DC input module brings flexible wiring options for field devices.
Independent LED for each input channel. The Allen‑Bradley 1762-IQ16 16-point digital DC input module has dedicated LEDs to show real-time ON/OFF state of every channel, the Allen‑Bradley 1762-IQ16 16-point digital DC input module simplifies on-site wiring check and troubleshooting.
Easy side expansion installation. The Allen‑Bradley 1762-IQ16 16-point digital DC input module directly latches onto MicroLogix 1200 controller, the Allen‑Bradley 1762-IQ16 16-point digital DC input module needs no extra backplane chassis.
Native support with RSLogix 500 programming environment. The Allen‑Bradley 1762-IQ16 16-point digital DC input module can be configured and monitored inside RSLogix 500, the Allen‑Bradley 1762-IQ16 16-point digital DC input module matches MicroLogix 1200 programming workflow.
1762-IQ16 Applications
Small packaging machine signal acquisition. Dedicated digital input expansion unit within Allen‑Bradley 1762 MicroLogix PLC systems, the Allen‑Bradley 1762-IQ16 16-point digital DC input module collects signals from limit switches and photo sensors on packaging machinery. Conveyor and material handling control system. The Allen‑Bradley 1762-IQ16 16-point digital DC input module receives proximity sensor and emergency stop feedback for compact conveyor lines. General automation skid control. The Allen‑Bradley 1762-IQ16 16-point digital DC input module handles discrete sensor inputs for pump skids, valve packages and small process skids. Legacy MicroLogix 1200 System Spare Replacement. The Allen‑Bradley 1762-IQ16 16-point digital DC input module is stocked as spare‑replacement unit for existing MicroLogix 1200 expansion installations. Woodworking and textile auxiliary machine control. The Allen‑Bradley 1762-IQ16 16-point digital DC input module captures position and safety sensor signals for standalone small production machines.

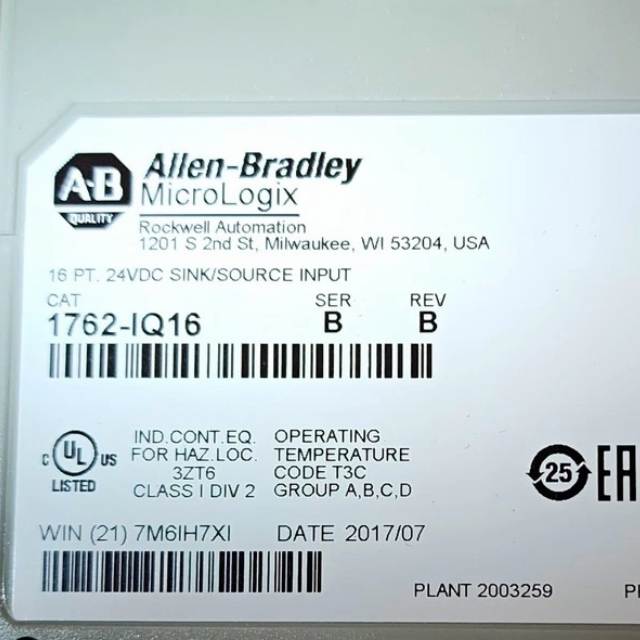

1762-IQ16 Certifications & Compliance
The Allen‑Bradley 1762-IQ16 16-point digital DC input module holds the following international safety and compliance approvals:
• UL listed — North‑American industrial control equipment safety approval. • CE certification — European industrial control equipment safety and EMC compliance. • C‑Tick marked — EMC compliance for Australian and New Zealand markets. • Class I Division 2 certified — Suitable for installation in specified hazardous classified locations.
All modules supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1762-IQ16 16-point digital DC input module unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
