When a Honeywell FSC safety system module fails in a refinery or chemical plant, the cost of unplanned downtime can exceed the value of the replacement part within hours. The FSC (Fail-Safe Controller) platform, deployed across oil and gas, petrochemical, and power generation facilities since the 1990s, remains operational in thousands of installations worldwide. Sourcing spare parts like the 10001/R/1 power supply or 10004/1/1 I/O module requires understanding both the technical specifications and the realities of a discontinued product line. I have supported clients through urgent FSC replacements where the difference between a two-day and two-week lead time determined whether a turnaround stayed on schedule.
Why FSC Spare Parts Remain in High Demand
Honeywell discontinued active production of the FSC platform years ago, yet installed systems continue operating because migration to newer safety platforms like the Safety Manager or ProSafe-RS involves substantial engineering, validation, and regulatory requalification costs. Plants running FSC systems face a straightforward calculation: maintain the existing system with spare parts until a planned upgrade window, or accept the risk of forced migration during an unplanned failure.

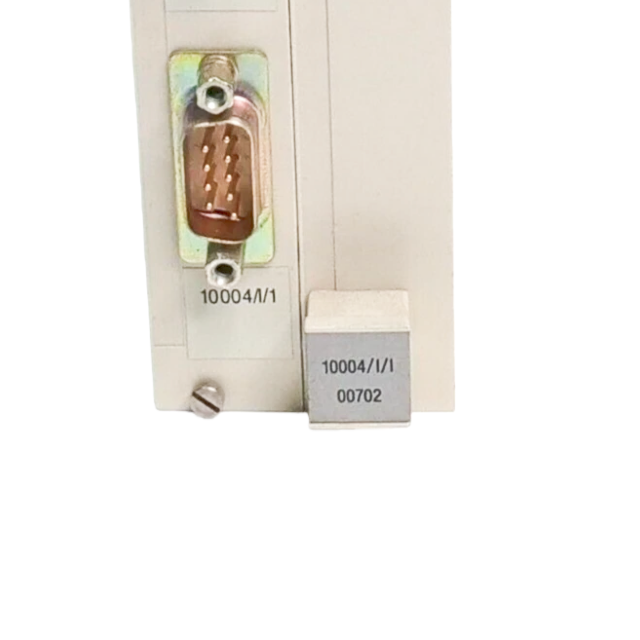

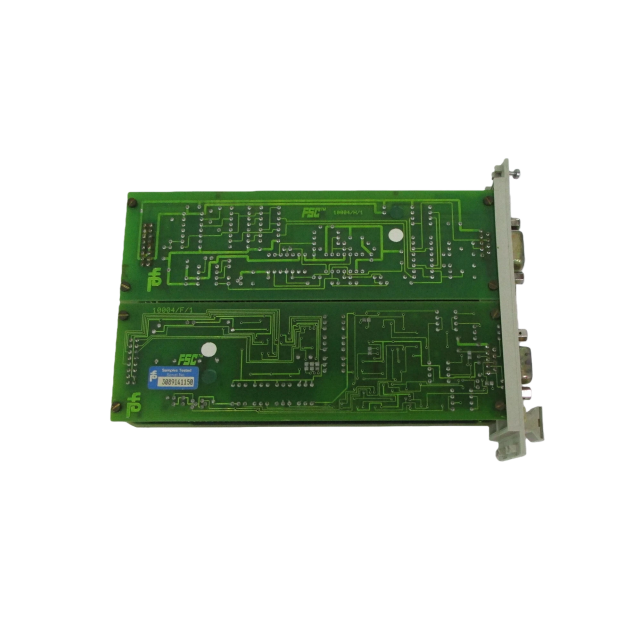

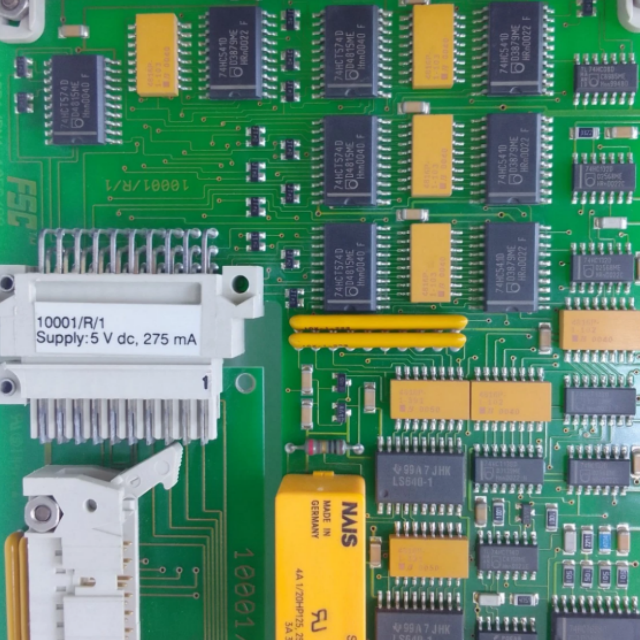

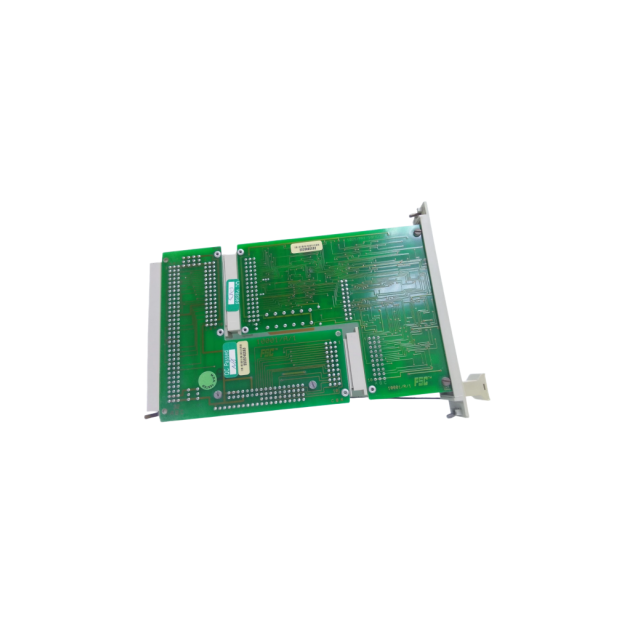

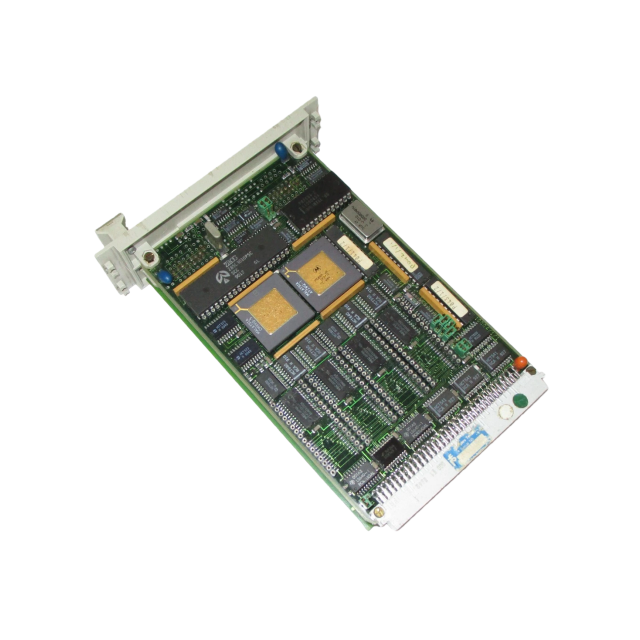

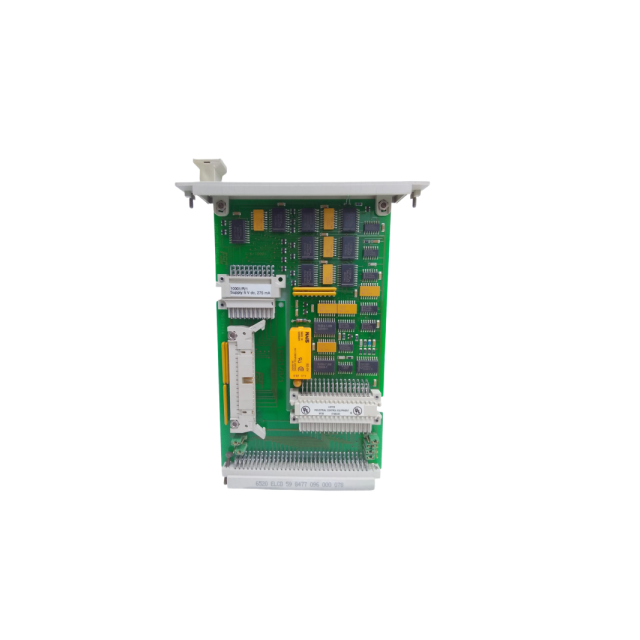

The 10001/R/1 serves as the primary power supply module for FSC racks, converting incoming AC or DC power to the regulated voltages required by CPU and I/O modules. When this module degrades, the entire safety function of that rack becomes unreliable. The 10004/1/1 digital input module handles field signals from emergency shutdown switches, flame detectors, and pressure transmitters. Both components have no direct substitutes within the FSC architecture.
Procurement teams often discover that original equipment manufacturer channels no longer stock these parts or quote lead times measured in months. This reality drives demand toward specialized suppliers who maintain inventories of tested, verified FSC components.
Technical Specifications for 10001/R/1 and 10004/1/1 Modules
Understanding the exact specifications prevents ordering errors and ensures compatibility with existing rack configurations.
Part Number
Function
Input Voltage
Output Channels
Typical Application
10001/R/1
Power Supply Module
24VDC or 115/230VAC
N/A
Rack power distribution
10004/1/1
Digital Input Module
24VDC field signals
16 channels
ESD switches, detectors
10005/1/1
Digital Output Module
24VDC
8 channels
Valve solenoids, alarms
10006/1/1
Analog Input Module
4-20mA
8 channels
Transmitter signals
The 10001/R/1 power supply must match the site’s power distribution scheme. Facilities with 24VDC instrument power systems use the DC input variant, while those with dedicated UPS-backed AC supplies use the AC version. Ordering the wrong variant means the module physically fits but cannot power the rack.
For the 10004/1/1, channel configuration and field wiring termination style matter. Some installations use direct wiring to the module terminals, while others route through intermediate terminal blocks. Replacement modules must accommodate the existing wiring approach without modification.
How to Verify FSC Module Condition Before Purchase
Buying a used or refurbished safety system module without verification creates unacceptable risk. The module might have been pulled from a decommissioned system that experienced environmental damage, or it might have intermittent faults that only appear under load.
I recommend requesting the following documentation from any supplier:
Functional test reports showing the module powered up and responded correctly to simulated inputs or produced correct outputs. For power supplies, this includes voltage regulation under load and ripple measurements. For I/O modules, this means channel-by-channel verification against known good signals.
Visual inspection photographs documenting connector condition, board cleanliness, and absence of corrosion or heat damage. Modules pulled from coastal or high-humidity installations sometimes show corrosion on edge connectors that causes intermittent communication failures.
Provenance information indicating where the module originated. Modules from operating plants that underwent planned upgrades typically have more remaining service life than those pulled after failures.
If your facility operates under IEC 61511 or similar functional safety standards, document the verification process in your safety lifecycle records. Auditors may question how you assured the integrity of replacement safety components.
Common FSC Sourcing Challenges and How to Address Them
The FSC spare parts market presents several recurring problems that procurement teams encounter.
Counterfeit or misrepresented parts occasionally appear, particularly for high-value modules. A module labeled as 10001/R/1 might actually be a different revision with incompatible firmware, or it might be a non-functional unit sold as working. Working with suppliers who provide test documentation and accept returns for verified defects reduces this risk.
Lead time uncertainty affects planning. A supplier might quote stock availability, then discover during order processing that the specific revision needed is not actually on hand. Confirming exact part numbers including revision codes before committing to purchase prevents this scenario.
Price volatility reflects supply and demand dynamics in a declining market. When a major facility announces FSC decommissioning and releases inventory, prices temporarily drop. When multiple facilities simultaneously need the same module, prices spike. Maintaining a small buffer stock of the most failure-prone modules provides insurance against price and availability fluctuations.
What Determines Whether to Repair, Replace, or Migrate
Not every FSC module failure requires immediate replacement with an identical part. The decision depends on several factors that procurement and engineering teams should evaluate together.
Remaining system life expectancy matters most. If the facility plans to migrate away from FSC within two years, investing in expensive spare parts makes less sense than accepting slightly higher risk or implementing compensating measures. If the system will operate for another decade, building spare parts inventory becomes a sound investment.
Module criticality varies within the system. A failed spare I/O module in a non-critical loop might be acceptable temporarily, while a failed power supply or CPU module typically requires immediate replacement to maintain safety function.
Repair economics sometimes favor sending failed modules to specialized repair facilities rather than purchasing replacements. Power supply modules with failed capacitors or voltage regulators can often be repaired at lower cost than replacement, provided the repair facility has FSC experience and can perform functional verification afterward.
For facilities considering migration, Honeywell’s Safety Manager platform and third-party alternatives offer paths forward, but the engineering and validation effort typically requires 12-18 months of planning before execution. Spare parts extend the runway for this planning process.
Working with Joyoung for FSC Spare Parts
We maintain inventory of Honeywell FSC modules including the 10001/R/1 power supply and 10004/1/1 digital input module, along with other common FSC components. Each module undergoes functional testing before shipment, and we provide test documentation with every order.
When you need a specific FSC part number, send the complete part number including any revision codes to chen@htechplc.com or call +86-181-5013-7565. We will confirm availability, provide pricing, and discuss lead time. For urgent requirements, we can often arrange expedited shipping to minimize your downtime exposure.
If you are building a spare parts strategy for an FSC installation, we can review your module inventory and recommend which parts to stock based on common failure patterns and your system configuration.
Frequently Asked Questions About Honeywell FSC Spare Parts
Can FSC modules from different system revisions be interchanged?
FSC modules must match the system revision they are installed in. Honeywell released several FSC generations with different firmware and hardware revisions that are not always backward or forward compatible. Before purchasing a replacement module, confirm the exact revision code with your existing system documentation. If you are unsure which revision your system uses, we can help identify compatible modules based on your existing part numbers.
How long can FSC systems realistically continue operating with spare parts support?
Many FSC installations have operated for 25+ years and continue running reliably with proper maintenance and spare parts availability. The limiting factor is typically not the technology itself but the availability of knowledgeable personnel and replacement components. Facilities that maintain adequate spare parts inventory and retain staff familiar with FSC programming and troubleshooting can reasonably expect continued operation for another 5-10 years. Share your system configuration and we can assess spare parts availability for your specific installation.
What testing should be performed on FSC modules after installation?
After installing a replacement FSC module, perform a functional test of all channels or functions before returning the system to service. For I/O modules, this means verifying each input reads correctly and each output drives its field device. For power supplies, verify output voltages are within specification under normal operating load. Document these tests in your maintenance records. If your facility requires proof testing under IEC 61511, the replacement installation may trigger a proof test requirement for the affected safety function.
Are there any FSC modules that are particularly difficult to source?
CPU modules and certain specialized communication modules tend to be the most difficult FSC components to source because they were produced in lower quantities and have higher failure rates than simple I/O modules. Power supplies like the 10001/R/1 are moderately available because many decommissioned systems release these components. Standard digital and analog I/O modules are generally the easiest to find. If you have a specific hard-to-find part number, reach out with the details and we will check our network for availability.
