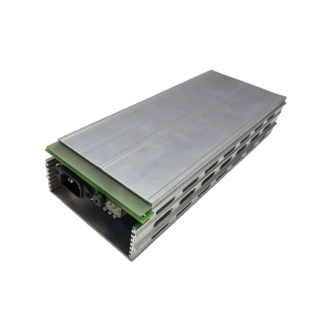

The ABB SB510 3BSE000860R1 is a power supply module used in ABB Advant OCS control systems. Compatibility is not only a matter of matching the ABB part number; it also depends on the specific controller station, rack version, input supply, output capability, and the actual load created by the installed controller and I/O modules. A replacement that looks similar can still cause undervoltage resets, communication interruptions, or overload shutdowns if those conditions are not checked. This overview explains how to approach the ABB SB510 3BSE000860R1 as a system component, so you can verify compatibility before buying or installing a replacement.
What the ABB SB510 Does in an Advant OCS System
The SB510 is part of the station power path in an Advant OCS installation. Instead of treating it as a general-purpose power supply, maintenance teams should view it as the module that must hold the station’s controller, rack, and I/O loads within a controlled voltage range. If the supplied power drops below the modules’ operating requirements, the controller may reset or an I/O channel may report an intermittent fault even though the SB510 still appears powered. That is why a replacement decision begins with the electrical and mechanical role inside the station, not only with the ABB label or a matching front panel.
The same part number may have revisions that affect connectors, internal components, or the approvals accepted in a specific plant. Therefore, the first compatibility question is which station and rack family the existing SB510 is installed in, which input voltage it is configured for, and which modules share its power bus. These details should be taken from the station documentation or the existing module markings, not assumed from a photograph.
Compatibility Points to Check Before Ordering
The following checks separate a parts identification exercise from a compatibility review.
Check | What to confirm | Why it matters |
|---|
Controller or rack type | The SB510 is listed for the actual Advant OCS station and enclosure | Prevents mechanical or electrical mismatch |
Input supply | The AC or DC input rating matches the site supply | A supply configured for another input can fail or be unsafe |
Output rating | Output voltage and allowable load meet the installed station load | Under-capacity causes resets or overload shutdown |
Part revision | The exact 3BSE000860R1 order code and revision match the controlled list | Substitution may not satisfy system documentation |
Load growth | Current draw of all connected modules plus future margin | Expansion can overload an otherwise suitable supply |
Connector and wiring | Pinout and terminal layout match the station | Prevents wiring damage or incorrect installation |
Power Budget and Rack Loading Checks
Start with the load, not the replacement part. List every controller, communication module, and I/O module that draws power from the same SB510 output. The total steady-state current, plus the inrush and startup margin required by the system, must stay within the output rating stated for the exact SB510 revision. If the plant has added I/O modules since the original power supply was selected, the previous spare may no longer have enough margin. A marginal supply often passes bench power-on but fails later under full load, temperature rise, or a momentary demand from an output module.
Where the station documentation does not provide a clear load figure, verify the nameplate or revision data from the existing supply and compare it with the controller and I/O module documentation. Do not substitute a higher current supply merely because the connector appears to match. The replacement must also satisfy the input supply, protection coordination, rack mounting, and any system-specific restrictions. Reliability in continuous process applications comes from matching the supply to the station as an engineered power budget, not from picking a visually similar generic unit.
Control system spares must support the same reliability expectations as the process they protect. <Oil Gas Automation Spares SIS DCS PLC Reliability> covers how spare selection affects SIS, DCS, and PLC reliability in continuous operations.
Revision, Condition, and Documentation Review
Legacy ABB modules may exist in new, refurbished, and surplus conditions under the same 3BSE000860R1 order code. The important review is whether the offered part is the same revision and configuration as the one removed from the station. Different revisions can be electronically compatible and still introduce a change in connectors, component ratings, or documentation. For plants with strict change control, the safest path is to order the same revision unless ABB documentation or an approved engineering assessment permits a substitute.
Condition matters differently for a power supply than for a passive mechanical part. Bent terminals, heat discoloration, damaged ventilation openings, or signs of previous repair should be reported before shipping. A basic visual review can support a preliminary condition assessment, but it does not prove that the capacitors, protection circuits, and regulation behavior will remain stable under load. Ask for a functional test, load test, and a clear statement of what has been checked before accepting a legacy supply as a replacement.
When a legacy power supply becomes difficult to source, the real decision may be whether to replace the module or migrate part of the station. <DCS Migration or Legacy Parts Strategic Industrial Choices> covers strategic factors for keeping older DCS assets supportable while controlling risk.
Procurement Checklist for a Legacy SB510 Power Supply
Use the following list when requesting a quote or preparing a replacement order:
Record the complete part number and revision, not only SB510.
Note the controller or rack type and the station’s input voltage.
Sum the connected load and keep a documented margin.
Compare the offered module to the existing supply, including connectors, mounting, and markings.
Ask for condition, test, and return or warranty information.
Keep the existing module available until the replacement is installed and the station is stable.
Get an ABB SB510 Compatibility Check
To avoid buying a visually similar supply that does not match the station, send the existing part number and revision, the controller or rack type, input voltage, and the connected I/O load summary. We can check ABB SB510 3BSE000860R1 availability and compatibility information for your Advant OCS system and help you choose a replacement with the right revision and condition. Contact Joyoung International Trading Co., Limited at chen@htechplc.com or +86-181-5013-7565.
FAQ
Is the ABB SB510 3BSE000860R1 interchangeable with any other ABB power supply?
No. A power supply may share the same ABB family and still differ in input voltage, output rating, connector arrangement, or revision. Use the exact part number and revision, backed by system documentation, before accepting an alternate.
How can I confirm that an SB510 can support additional I/O modules?
Add the consumption of all connected modules, include inrush and margin, and compare the result with the rated output for the specific SB510 revision. If the total is close or unknown, perform a measured load check or have the station reviewed before adding modules.
What should I ask a supplier when buying a legacy SB510?
Ask for the complete ABB order code, revision, input and output ratings, condition description, photos, functional or load test results, and return or warranty terms. These items help separate a verified spare from a generic surplus part.
Does a bench test prove that a replacement SB510 will work in my rack?
A bench test is useful but not enough alone. It should be combined with a load test, connector and mounting comparison, input supply verification, and a review of the exact application. Under-load stability and system interaction matter more than a simple power-on result.
