When a HIMA HIQUAD safety PLC module fails in an active safety instrumented system, the window between identifying the fault and restoring full SIL coverage can be measured in hours, not days. I have worked with maintenance teams who discovered that their F3236 digital output card had developed an intermittent channel fault during a routine proof test, only to find that the original manufacturer quoted 16 weeks for a replacement. That gap between operational need and OEM lead time defines the sourcing challenge for HIMA HIQUAD spare parts, and it is the reason why procurement engineers increasingly turn to specialized industrial automation parts suppliers who maintain ready stock of modules like the F3236, F3330, and F6217.
Why HIMA HIQUAD Modules Remain in Active Service
HIMA introduced the HIQUAD platform as a quad-redundant safety controller architecture designed for SIL 3 applications in oil and gas, petrochemical, and power generation facilities. The system’s hardware voting logic and fail-safe design made it a standard choice for emergency shutdown systems and burner management throughout the 1990s and 2000s. Many of these installations continue operating today because the cost and risk of migrating to a newer platform exceeds the cost of maintaining the existing system.
The F3236, F3330, and F6217 represent three distinct functional roles within a HIQUAD configuration:
Module
Function
Typical Application
F3236
16-channel digital output
Final element actuation, valve control
F3330
8-channel analog input
Process variable monitoring, transmitter interface
F6217
Communication processor
System bus interface, redundancy management
These modules were manufactured to industrial standards with expected service lives of 15 to 20 years. The challenge now is that many installations have exceeded that window, and HIMA has shifted production focus to the HIMax and HIMatrix platforms. Spare parts for HIQUAD systems are no longer manufactured in volume, which creates a secondary market where availability depends on supplier inventory rather than production schedules.
What Makes HIQUAD Spare Parts Difficult to Source
The sourcing difficulty for HIMA HIQUAD modules stems from three factors that compound each other. First, the installed base is aging but still operational, which means demand for replacement parts continues even as supply contracts. Second, HIMA’s transition to newer platforms means that HIQUAD modules are classified as legacy products with limited factory support. Third, the safety-critical nature of these systems means that buyers cannot accept modules of uncertain provenance or condition.

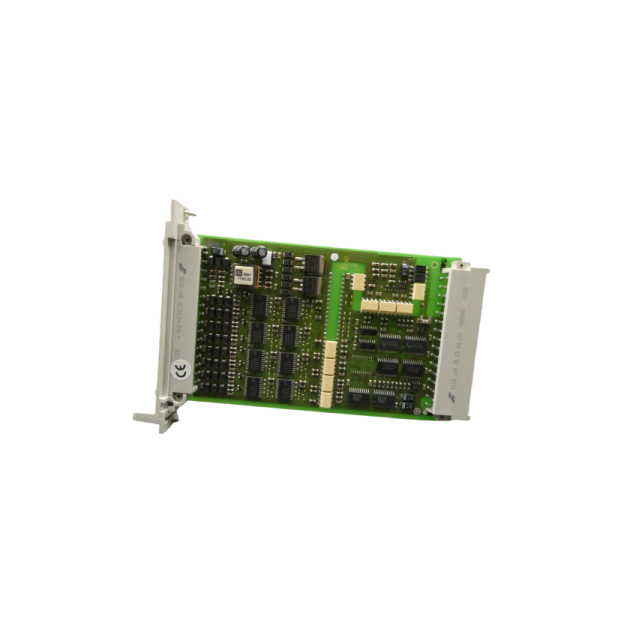

I have seen procurement teams spend weeks contacting distributors who list HIQUAD modules in their catalogs, only to discover that the listings are outdated or that the supplier is actually brokering from an unknown source. The F3330 analog input module is particularly difficult because it interfaces directly with safety-rated transmitters, and any deviation from original specifications can affect the integrity of the safety function.

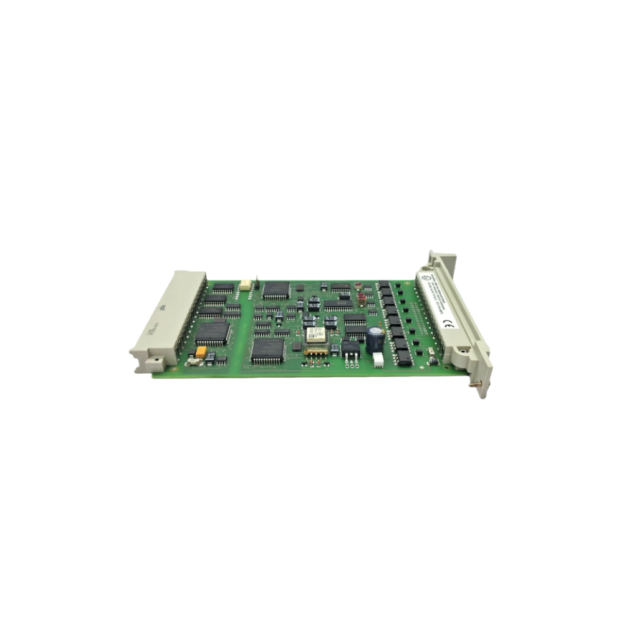

The F6217 communication processor presents a different challenge. Because it manages the system bus and redundancy switching, a faulty F6217 can take down an entire HIQUAD rack. Facilities that operate redundant configurations often want to maintain a spare F6217 in inventory, but the module’s complexity and low production volume make it one of the hardest HIQUAD parts to locate.
How to Verify HIMA HIQUAD Module Authenticity
When sourcing HIQUAD spare parts from the secondary market, verification becomes the critical step between receiving a module and installing it in a safety system. The consequences of installing a counterfeit or refurbished module that fails during a demand event are severe enough that most facilities require documented proof of authenticity before accepting delivery.
Genuine HIMA modules carry specific identification markers that can be verified against HIMA’s documentation:
Verification Point
What to Check
Part number format
Must match HIMA’s alphanumeric convention exactly
Serial number
Should be traceable through HIMA or authorized channels
Hardware revision
Must be compatible with installed firmware version
Date code
Indicates manufacturing period and expected component age

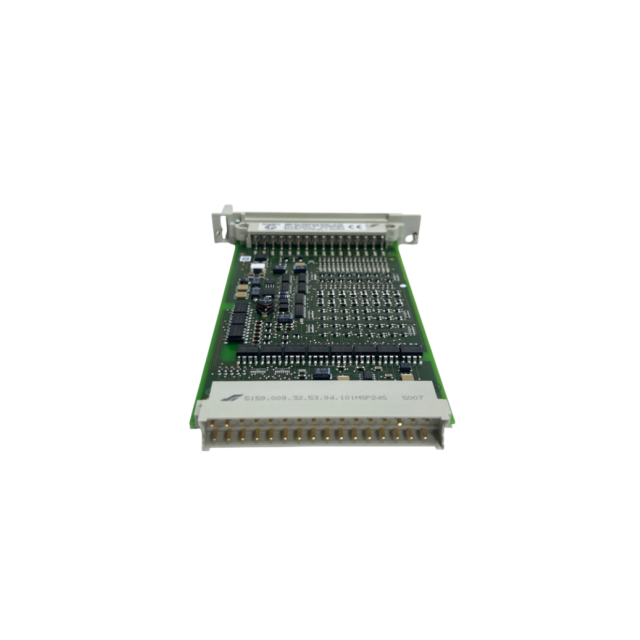

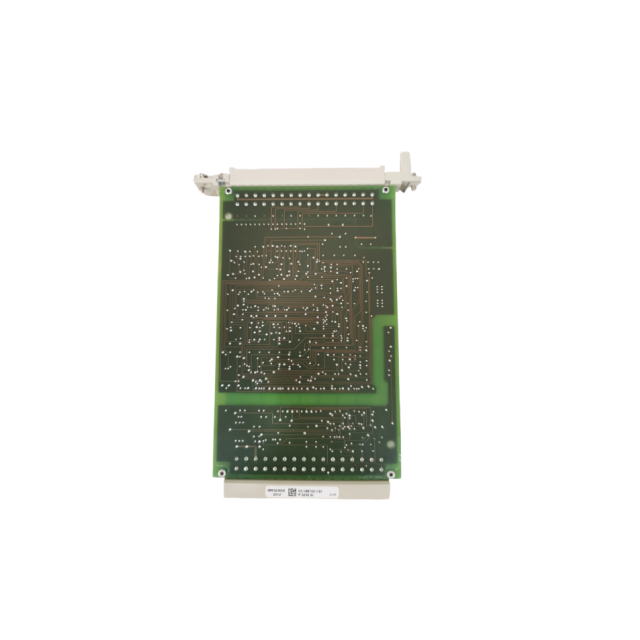

The F3236 digital output module, for example, should show a part number that corresponds to HIMA’s published specifications for the HIQUAD platform. If the label shows a generic part number or lacks the HIMA logo and formatting, that is an immediate disqualification.
Beyond visual inspection, functional testing before installation is standard practice. A supplier who cannot provide test documentation or refuses to allow pre-shipment verification is not a supplier who understands the safety requirements of this market.
Matching HIQUAD Modules to Your Installed Configuration
One of the errors I encounter regularly is procurement teams ordering a HIQUAD module by part number alone without confirming compatibility with their specific system configuration. The HIQUAD platform evolved through several hardware and firmware revisions, and a module that is technically correct by part number may not function properly in an older or newer rack.

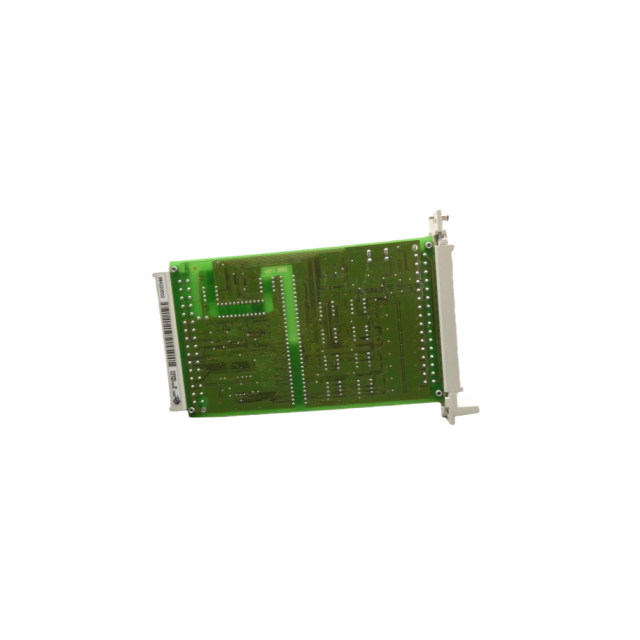

The F3330 analog input module exists in multiple revisions with different input range configurations. A facility running 4-20mA transmitters needs to confirm that the replacement F3330 is configured for that range, not for 0-10V or thermocouple inputs. This information should be documented in the facility’s as-built drawings, but I have worked with sites where the documentation was incomplete and the only way to confirm the configuration was to pull the existing module and read the hardware jumper settings.

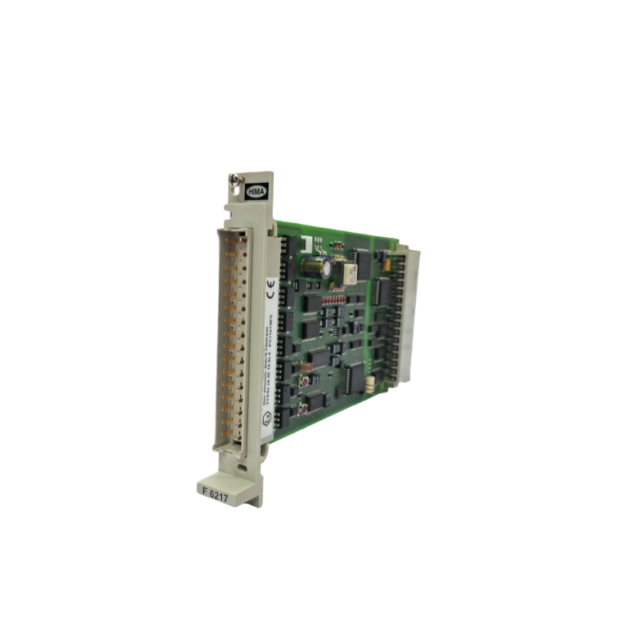

For the F6217 communication processor, compatibility depends on the system bus configuration and the firmware version running on the CPU modules. Installing an F6217 with incompatible firmware can cause communication faults that affect the entire safety system. Before ordering, confirm the firmware revision of your installed F6217 and verify that the replacement matches.
If your facility’s documentation is incomplete or you are uncertain about configuration requirements, it is worth confirming these details with your supplier before finalizing the order. Send your existing module’s part number, serial number, and any visible revision codes to chen@htechplc.com, and we can cross-reference against our inventory to confirm compatibility.
What to Expect from a Specialized HIQUAD Parts Supplier
The difference between a general automation parts broker and a supplier who specializes in legacy safety system components shows up in three areas: inventory depth, technical knowledge, and documentation quality.
Inventory depth matters because HIQUAD modules are not interchangeable commodities. A supplier who maintains actual stock of F3236, F3330, and F6217 modules can ship within days. A broker who needs to source from third parties may quote weeks or may come back with nothing at all.
Technical knowledge matters because safety system spare parts require more than logistics. A supplier who understands HIQUAD architecture can answer questions about revision compatibility, help identify the correct module for a specific application, and flag potential issues before they become installation problems.
Documentation quality matters because safety systems require traceability. Every module should come with documentation that includes the part number, serial number, test results, and any relevant certifications. This documentation becomes part of the facility’s safety system records and may be required during audits or proof tests.
Joyoung International Trading maintains ready stock of HIMA HIQUAD modules including the F3236, F3330, and F6217. We test every module before shipment and provide full documentation for your records. For urgent requirements or to confirm availability against your specific configuration, contact us at chen@htechplc.com or +86-181-5013-7565.
Common Questions About HIMA HIQUAD Spare Parts Sourcing
Can I use a newer HIMA platform module as a direct replacement for a HIQUAD module?
No. The HIMax and HIMatrix platforms use different hardware architectures, backplane connections, and communication protocols than the HIQUAD system. A HIMax module cannot be installed in a HIQUAD rack without a complete system migration. If you are considering migration, that is a separate engineering project with its own timeline and budget. For maintaining an existing HIQUAD system, you need HIQUAD-specific modules.
How long can I expect a HIQUAD module to last after installation?
Original HIMA HIQUAD modules were designed for 15 to 20 years of service in industrial environments. A module that has been properly stored and tested before installation should provide years of reliable operation. The key factors are storage conditions before installation, the operating environment after installation, and whether the module has been previously used or refurbished. We provide storage history and test documentation with every module so you can assess expected service life.
What happens if a HIQUAD module fails during operation?
The HIQUAD architecture includes hardware voting and fail-safe design that should drive outputs to their safe state if a module fails. However, the specific behavior depends on your system configuration and the nature of the failure. A channel fault on an F3236 may be annunciated while the system continues operating in a degraded mode. A complete module failure may trigger a system trip. Your facility’s safety requirements document should specify the required response time for replacing failed modules. If you need to establish a spare parts inventory to meet those requirements, share your module list and we can confirm availability.
Are refurbished HIQUAD modules acceptable for safety applications?
This depends on your facility’s safety management system and the quality of the refurbishment process. Some facilities accept refurbished modules if they come with documented test results and traceability. Others require new or unused modules only. We can provide both options depending on your requirements. The key is transparency about the module’s history and condition. If you need guidance on what your safety requirements permit, send your specifications to chen@htechplc.com and we can discuss options.
How quickly can you ship HIMA HIQUAD modules?
For modules in our ready stock, we can ship within 1 to 3 business days after order confirmation. Lead times for modules that require sourcing vary depending on availability. When you contact us with your requirements, we provide a firm lead time commitment based on actual inventory status, not estimates. For emergency requirements where a safety system is down or degraded, call +86-181-5013-7565 directly to discuss expedited options.
