1769-CRR1 Advantages

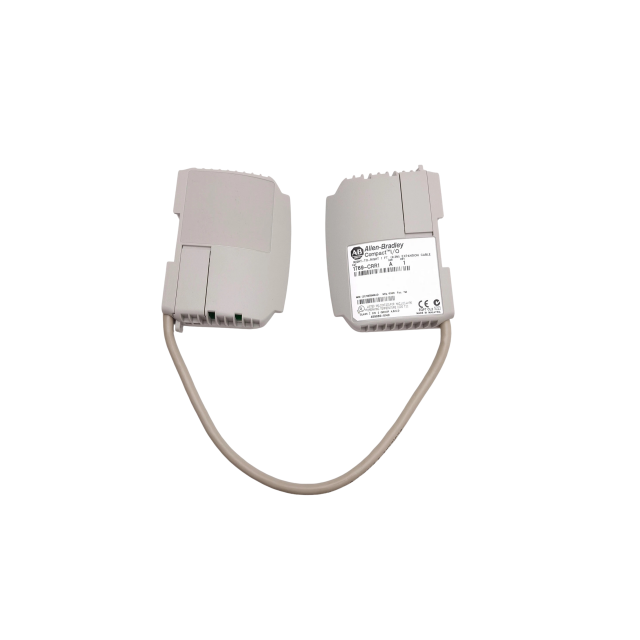

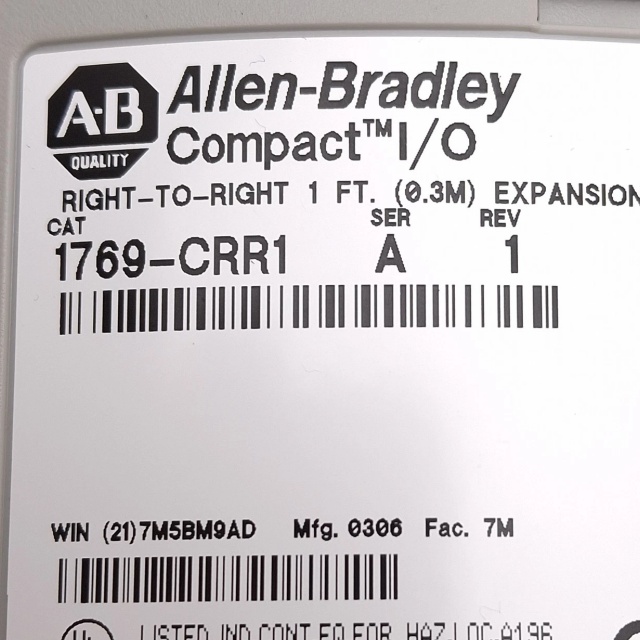

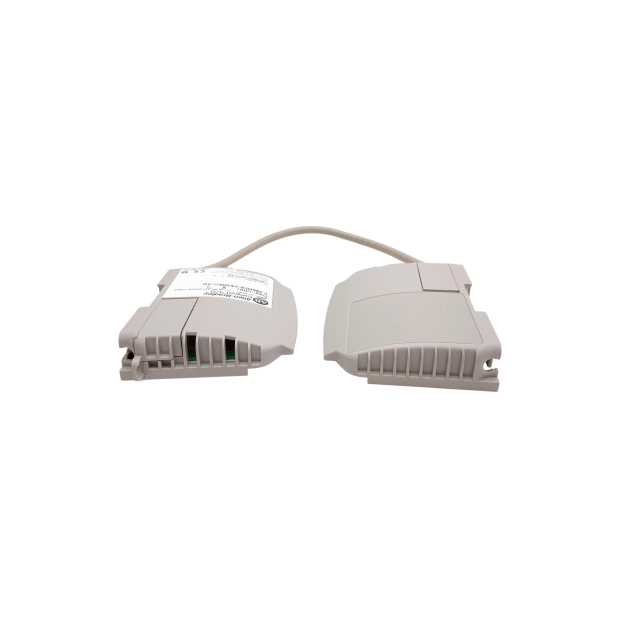

The Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable stands out from comparable expansion cable assemblies in several key areas.
Fixed 0.3‑meter optimized cabinet length. The Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable uses 0.3 m cable length perfectly suited for cabinet internal I/O bank separation, the Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable avoids excess slack cable inside control enclosures.
Shielded industrial bus construction. The Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable adopts full shielded cable design, the Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable provides strong noise immunity for backplane signal transmission in electrically noisy workshop environments.
Positive‑lock molded connectors. The Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable is fitted with locking retention clips on both end connectors, the Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable prevents accidental disconnection caused by cabinet vibration.
Zero software configuration requirement. The Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable is a fully passive cable assembly, the Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable works immediately after correct physical connection without downloading special project settings.
Full native 1769 platform compatibility. The Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable is factory‑matched for 1769 CompactLogix I/O bank expansion ports, the Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable transfers both backplane communication signals and auxiliary backplane power between I/O groups.
Robust mechanical environmental performance. The Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable passes industrial vibration and shock test criteria, the Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable maintains reliable interconnection under typical cabinet mechanical stress.
1769-CRR1 Applications
CompactLogix cabinet multi‑bank I/O interconnection. Dedicated backplane expansion cable within Allen‑Bradley 1769 CompactLogix I/O systems, the Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable links physically separated 1769 I/O banks inside automation control cabinets.
Packaging machinery CompactLogix cabinet layout optimization. The Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable enables flexible arrangement of distributed 1769 I/O banks for packaging production machine control panels.
Material‑handling equipment control cabinet construction. The Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable extends the local backplane bus to arrange I/O modules on separate DIN‑rail segments for conveyor automation systems.
Legacy CompactLogix System Spare Replacement. The Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable is stocked as spare‑replacement unit for existing 1769 CompactLogix I/O expansion installations.
Skid‑mount process control panel I/O expansion. The Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable connects multiple I/O banks on compact skid control cabinets for pump and valve package automation.
1769-CRR1 Certifications & Compliance
The Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable holds the following international safety and compliance approvals:
• UL listed — North‑American industrial control equipment safety approval. • CE certification — European industrial control equipment safety and EMC compliance. • C‑Tick marked — EMC compliance for Australian and New Zealand markets.
All units supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1769‑CRR1 Compactlogix Bus Expansion Cable unit is visually and functionally inspected before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
