1769-IA16 Advantages
The Allen‑Bradley 1769‑IA16 Input Module stands out from comparable CompactLogix input modules in several key areas.

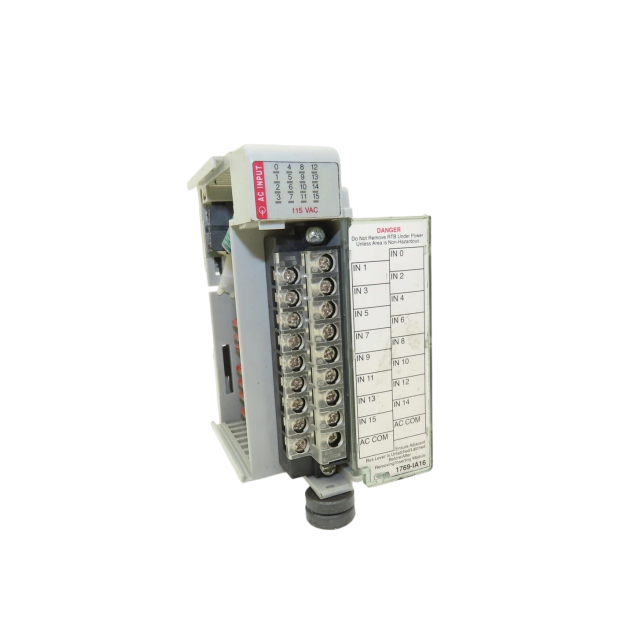

High‑density 16‑point AC input design. The Allen‑Bradley 1769‑IA16 Input Module provides sixteen AC input channels within one Compact I/O slot, the Allen‑Bradley 1769‑IA16 Input Module reduces cabinet space occupation for 120V AC signal acquisition projects.
Reinforced point‑to‑backplane isolation. The Allen‑Bradley 1769‑IA16 Input Module adopts reinforced insulation between field AC side and controller backplane, the Allen‑Bradley 1769‑IA16 Input Module blocks field surge and noise to protect host controller hardware.

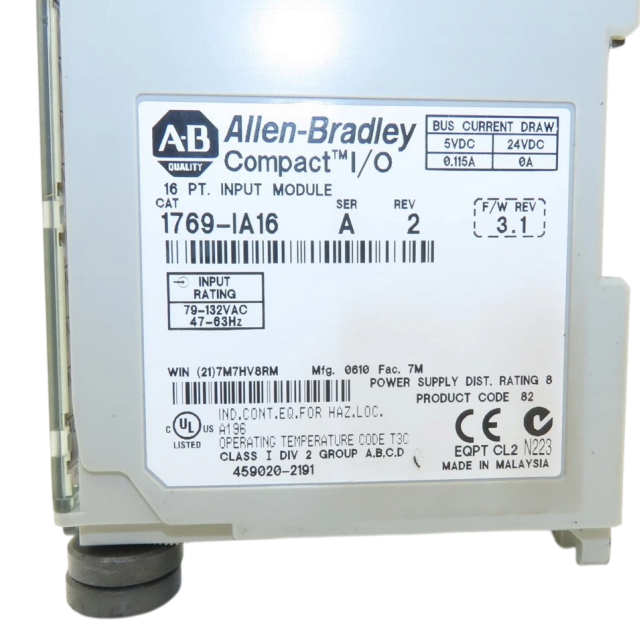

Standard 120V AC industrial input specification. The Allen‑Bradley 1769‑IA16 Input Module supports 79‑132V AC wide input working range, the Allen‑Bradley 1769‑IA16 Input Module adapts to global 120V AC sensor and switch field devices.
Per‑channel visual LED status feedback. The Allen‑Bradley 1769‑IA16 Input Module is equipped with dedicated LED for each input channel, the Allen‑Bradley 1769‑IA16 Input Module allows field technicians fast on‑site wiring verification and fault location.
Native CompactLogix platform integration. The Allen‑Bradley 1769‑IA16 Input Module auto‑maps input tags in Studio 5000 / RSLogix 5000, the Allen‑Bradley 1769‑IA16 Input Module supports multi‑bank expansion by using 1769‑CRR1 bus expansion cable.
Flexible mechanical mounting options. The Allen‑Bradley 1769‑IA16 Input Module supports both standard DIN‑rail mounting and direct panel mounting, the Allen‑Bradley 1769‑IA16 Input Module satisfies different cabinet mechanical layout requirements.
1769-IA16 Applications
AC discrete signal acquisition for packaging equipment. Dedicated 120V‑AC digital input unit within Allen‑Bradley 1769 CompactLogix I/O systems, the Allen‑Bradley 1769‑IA16 Input Module collects status of limit switches and safety interlock switches on automatic packaging lines.
Conveyor and material‑handling automation I/O expansion. The Allen‑Bradley 1769‑IA16 Input Module receives signals from AC‑type proximity sensors, emergency‑stop buttons and photo‑eyes for conveyor control systems.
Skid‑mount process control cabinet signal collection. The Allen‑Bradley 1769‑IA16 Input Module acquires discrete AC feedback signals for pump skids, valve packages and auxiliary process units.
Legacy CompactLogix System Spare Replacement. The Allen‑Bradley 1769‑IA16 Input Module is stocked as spare‑replacement unit for existing 1769 CompactLogix AC input installations.
General factory machine I/O expansion. The Allen‑Bradley 1769‑IA16 Input Module provides high‑density 120V‑AC input points for standalone production machinery with AC‑type field sensors and switches.
1769-IA16 Certifications & Compliance
The Allen‑Bradley 1769‑IA16 Input Module holds the following international safety and compliance approvals:
• UL listed — North‑American industrial control equipment safety approval. • CE certification — European industrial control equipment safety and EMC compliance. • C‑Tick marked — EMC compliance for Australian and New Zealand markets. • Class I Division 2 certified — Suitable for installation in specified hazardous classified locations.
All modules supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1769‑IA16 Input Module unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
