1769-L23E-QB1B Advantages
The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit stands out from comparable CompactLogix controllers in several key areas.
Integrated embedded 32‑point digital I/O. The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit provides 16 DC sinking inputs plus 16 DC sourcing outputs built‑into the controller unit, reducing extra I/O module requirement for compact machine projects.
Dual communication interfaces. The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit is equipped with one EtherNet/IP port and one galvanically‑isolated RS‑232 serial port, supporting both modern Ethernet networking and legacy serial device connection.
Large expansion I/O capacity. The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit supports up to 16 pieces of 1769 expansion I/O modules, allowing flexible I/O scaling as application demands increase.
Battery‑backed data retention. The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit uses replaceable backup battery for retaining real‑time clock and tag data during power loss, preventing runtime data loss after power cycle.
Unified Logix programming environment. The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit uses standard Studio 5000 / RSLogix 5000 tag‑based programming, sharing the same programming workflow with larger ControlLogix platforms.
Clear multi‑status LED indicators. The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit features dedicated LEDs for run, fault, force and I/O channel status, assisting maintenance technicians with rapid on‑site fault diagnosis.
1769-L23E-QB1B Applications
Packaging machine integrated control. The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit is a dedicated packaged Logix controller within Allen‑Bradley 1769 CompactLogix systems, executing machine logic for feeding, sealing and sorting functions on small‑and‑medium packaging equipment.
Conveyor and material‑handling automation. The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit manages embedded I/O plus 1769 expansion I/O for compact conveyor lines, communicating with HMI and variable‑speed drives over EtherNet/IP or serial RS‑232 connection.
Skid‑mounted pump & valve package control. The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit delivers compact sequence control for water‑treatment and fluid‑handling skid units that require both Ethernet and serial device interfaces.
Legacy CompactLogix Packaged Controller System Spare Replacement. The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit is stocked as spare‑replacement unit for existing 1769‑L23E‑QB1B packaged controller field installations.
Standalone special‑purpose machinery control. The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit provides integrated control for textile, wood‑working and auxiliary production machines requiring mixed Ethernet‑serial communication capability.

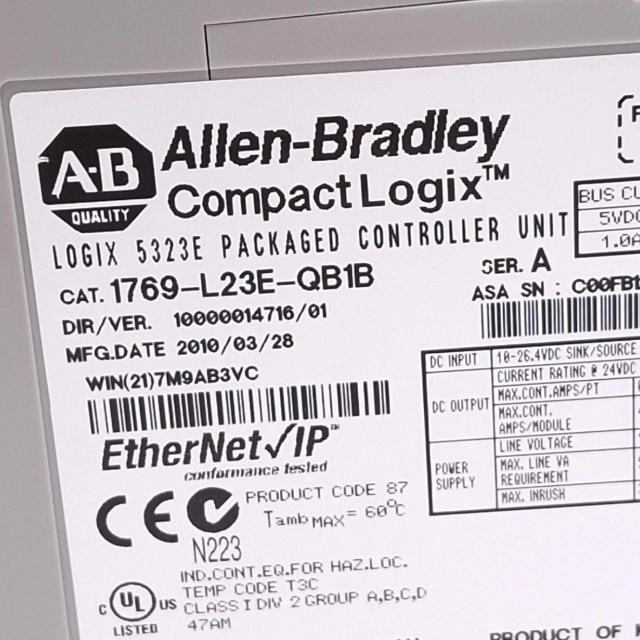

1769-L23E-QB1B Certifications & Compliance
The Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit holds the following international safety and compliance approvals:
UL listed — North‑American industrial control equipment safety approval.
CE certification — European industrial control equipment safety and EMC compliance.
C‑Tick marked — EMC compliance for Australian and New Zealand markets.
Class I Division 2 certified — Suitable for installation in specified hazardous classified locations.
All units supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1769‑L23E‑QB1B CompactLogix Controller Unit unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
