1769-L32C Advantages
The Allen‑Bradley 1769-L32C CompactLogix Controller stands out from comparable CompactLogix controllers in several key areas.
Native ControlNet communication interface. The Allen‑Bradley 1769-L32C CompactLogix Controller integrates a dedicated ControlNet port, the Allen‑Bradley 1769-L32C CompactLogix Controller supports high-speed, deterministic ControlNet network communication for distributed I/O and peer-to-peer controller data exchange.
Dual RS‑232 serial channels. The Allen‑Bradley 1769-L32C CompactLogix Controller is equipped with two RS‑232 ports, one isolated and one non-isolated, the Allen‑Bradley 1769-L32C CompactLogix Controller allows simultaneous connection to programming terminals, HMIs and legacy serial field devices.
Sufficient user memory for medium applications. The Allen‑Bradley 1769-L32C CompactLogix Controller has 750 KB user application memory, the Allen‑Bradley 1769-L32C CompactLogix Controller supports complex tag-based programs, data logging and multiple network message instructions.
Large I/O expansion capacity. The Allen‑Bradley 1769-L32C CompactLogix Controller supports up to 16 pieces of 1769 expansion I/O modules, the Allen‑Bradley 1769-L32C CompactLogix Controller enables flexible I/O scaling to match changing production requirements.
Removable CompactFlash card support. The Allen‑Bradley 1769-L32C CompactLogix Controller has a CompactFlash slot for program backup, firmware update and data storage, the Allen‑Bradley 1769-L32C CompactLogix Controller simplifies program duplication and field maintenance.
Unified Logix programming environment. The Allen‑Bradley 1769-L32C CompactLogix Controller uses standard Studio 5000 / RSLogix 5000 tag-based programming, the Allen‑Bradley 1769-L32C CompactLogix Controller shares programming workflow with ControlLogix and other CompactLogix controllers.
Clear multi-status LED indicators. The Allen‑Bradley 1769-L32C CompactLogix Controller features dedicated LEDs for run, fault, force and network status, the Allen‑Bradley 1769-L32C CompactLogix Controller assists maintenance technicians with rapid on-site fault diagnosis.
1769-L32C Applications
Packaging machine sequence control. The Allen‑Bradley 1769-L32C CompactLogix Controller is a dedicated modular Logix controller within Allen‑Bradley 1769 CompactLogix systems, the Allen‑Bradley 1769-L32C CompactLogix Controller executes machine logic for feeding, sealing, labeling and sorting functions.
Conveyor and material-handling automation. The Allen‑Bradley 1769-L32C CompactLogix Controller manages 1769 expansion I/O for conveyor systems, exchanging real-time data over ControlNet and connecting local HMI via RS‑232 serial ports.
Process skid and fluid handling control. The Allen‑Bradley 1769-L32C CompactLogix Controller delivers reliable sequence control for pump, valve and instrument skids that rely on ControlNet fieldbus architecture.
Legacy ControlNet automation system spare replacement. The Allen‑Bradley 1769-L32C CompactLogix Controller is stocked as spare-replacement unit for existing 1769-L32C controller field installations with ControlNet networks.
General factory standalone machine control. The Allen‑Bradley 1769-L32C CompactLogix Controller provides integrated control for woodworking, textile and auxiliary production machines requiring ControlNet and mixed serial communication capability.

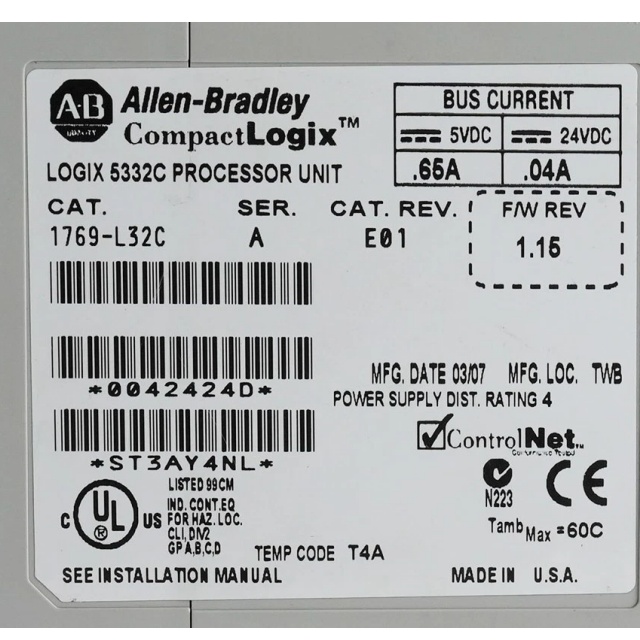

1769-L32C Certifications & Compliance
The Allen‑Bradley 1769-L32C CompactLogix Controller holds the following international safety and compliance approvals:
UL listed — North‑American industrial control equipment safety approval.
CE certification — European industrial control equipment safety and EMC compliance.
C‑Tick marked — EMC compliance for Australian and New Zealand markets.
Class I Division 2 certified — Suitable for installation in specified hazardous classified locations.
All units supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1769-L32C CompactLogix Controller unit is functionally tested before dispatch, packed in professional anti-static packaging, and covered by a one-year warranty from the date of delivery.
