1769-OA16 Advantages
The Allen‑Bradley 1769-OA16 Output Module stands out from comparable Compact I/O output modules in several key areas.
Solid-state AC switching design. The Allen‑Bradley 1769-OA16 Output Module uses solid-state switches without mechanical contacts, the Allen‑Bradley 1769-OA16 Output Module features long service life and fast switching response for frequent ON/OFF control applications.
16 high-density AC output channels. The Allen‑Bradley 1769-OA16 Output Module integrates 16 AC output points in compact housing, the Allen‑Bradley 1769-OA16 Output Module reduces cabinet space occupation and lowers overall system cost.
Wide AC voltage working range. The Allen‑Bradley 1769-OA16 Output Module supports 85~265V AC input, the Allen‑Bradley 1769-OA16 Output Module fits both 120V and 240V AC global field power networks.
Optical isolation protection. The Allen‑Bradley 1769-OA16 Output Module provides isolation between the controller backplane and field AC side, the Allen‑Bradley 1769-OA16 Output Module prevents field surge and noise damage to the controller.

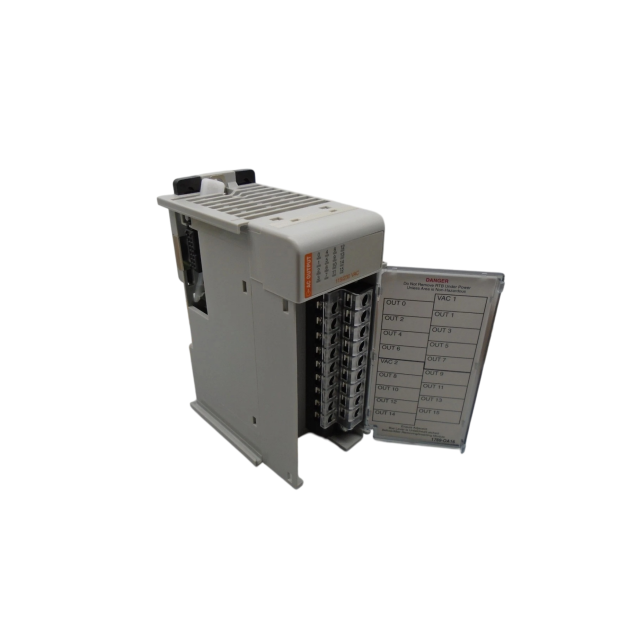

Removable terminal block. The Allen‑Bradley 1769-OA16 Output Module is equipped with detachable terminal block, the Allen‑Bradley 1769-OA16 Output Module simplifies field wiring, module replacement and maintenance without rewiring.
Clear point status indicators. The Allen‑Bradley 1769-OA16 Output Module has independent LED for each channel, the Allen‑Bradley 1769-OA16 Output Module helps technicians quickly locate faulty channels during on-site troubleshooting.
Seamless CompactLogix integration. The Allen‑Bradley 1769-OA16 Output Module is fully recognized by RSLogix 5000 and Studio 5000 software, the Allen‑Bradley 1769-OA16 Output Module supports software keying and automatic module identification.
1769-OA16 Applications
Packaging machine actuator control. The Allen‑Bradley 1769-OA16 Output Module is a dedicated AC discrete output module within Allen‑Bradley 1769 CompactLogix systems, the Allen‑Bradley 1769-OA16 Output Module controls AC solenoid valves, clamps and conveying actuators.
Conveyor and material-handling automation. The Allen‑Bradley 1769-OA16 Output Module switches AC indicator lamps, AC contactor coils and small AC motors for sorting and conveying lines.
Process skid auxiliary device control. The Allen‑Bradley 1769-OA16 Output Module delivers reliable on-off control for AC-powered auxiliary valves and alarm indicators on fluid and chemical skids.
Legacy CompactLogix AC I/O system spare replacement. The Allen‑Bradley 1769-OA16 Output Module is stocked as spare-replacement unit for existing 1769-OA16 module field installations.
General factory discrete AC load control. The Allen‑Bradley 1769-OA16 Output Module provides stable switching control for lighting, fans and other standard AC field loads on standalone automation machines.

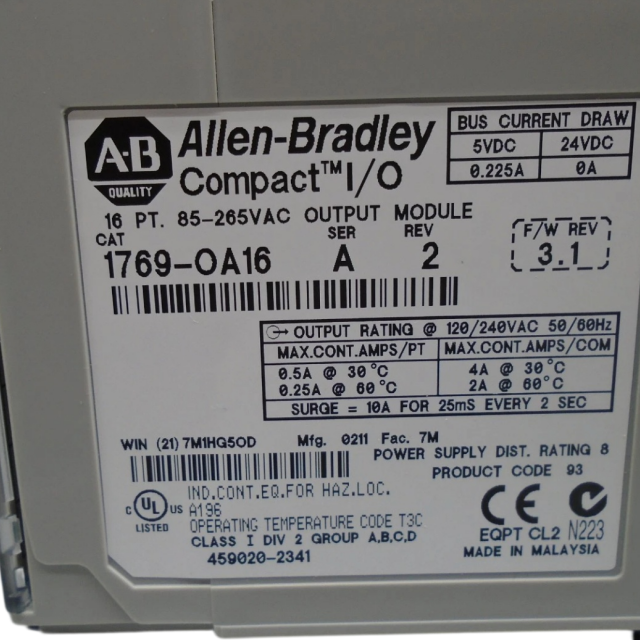

1769-OA16 Certifications & Compliance
The Allen‑Bradley 1769-OA16 Output Module holds the following international safety and compliance approvals:
UL listed — North‑American industrial control equipment safety approval.
CE certification — European industrial control equipment safety and EMC compliance.
C‑Tick marked — EMC compliance for Australian and New Zealand markets.
Class I Division 2 certified — Suitable for installation in specified hazardous classified locations.
All units supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1769-OA16 Output Module unit is functionally tested before dispatch, packed in professional anti-static packaging, and covered by a one-year warranty from the date of delivery.
