1769-OW8 Advantages
The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module stands out from comparable Compact I/O output modules in several key areas.
Universal AC/DC relay contact output. The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module uses mechanical relay contacts, the Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module supports both AC and DC loads for mixed-voltage field wiring requirements.
8-point compact relay design. The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module integrates 8 relay channels in compact housing, the Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module optimizes cabinet layout and reduces system hardware cost.
High contact current rating. The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module supports up to 2.5A resistive load per channel, the Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module can directly drive small contactors, valves and alarm devices.
Reinforced isolation protection. The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module provides high isolation strength between the controller backplane and field circuit, the Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module suppresses surge and noise interference from field loads.
Removable terminal block. The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module is equipped with detachable terminal block, the Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module simplifies field wiring, module replacement and maintenance without re-terminating field cables.
Independent channel status LEDs. The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module has dedicated LED for each output point, the Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module helps maintenance technicians quickly identify channel status and faults.
Seamless CompactLogix integration. The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module is fully recognized by RSLogix 5000 and Studio 5000 software, the Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module supports software module keying and automatic identification.
1769-OW8 Applications
Packaging machine actuator control. The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module is a dedicated relay output module within Allen‑Bradley 1769 CompactLogix systems, the Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module controls solenoid valves, clamps and release mechanisms.
Conveyor and material-handling automation. The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module switches indicator lights, contactor coils and auxiliary drives for sorting, diverting and conveying equipment.
Process skid auxiliary device control. The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module delivers reliable on-off control for pump interlocks, alarm horns and local valve actuators on fluid skids.
Legacy CompactLogix relay I/O system spare replacement. The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module is stocked as spare-replacement unit for existing 1769-OW8 module field installations.
General factory discrete load control. The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module provides flexible switching for fans, lighting and mixed AC/DC auxiliary loads on standalone automation machines.
1769-OW8 Certifications & Compliance

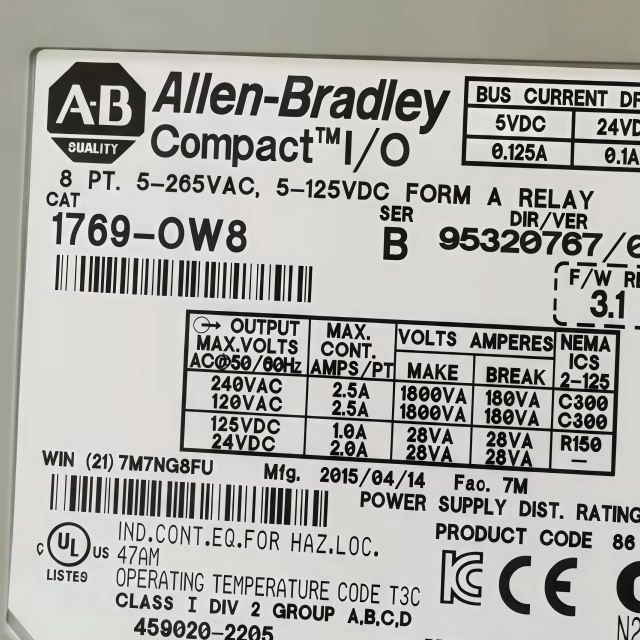

The Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module holds the following international safety and compliance approvals:
UL listed — North‑American industrial control equipment safety approval.
CE certification — European industrial control equipment safety and EMC compliance.
C‑Tick marked — EMC compliance for Australian and New Zealand markets.
Class I Division 2 certified — Suitable for installation in specified hazardous classified locations.
All units supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1769-OW8 Compact I/O 8 Pt VAC/VDC RELAY Output Module unit is functionally tested before dispatch, packed in professional anti-static packaging, and covered by a one-year warranty from the date of delivery.
