Securing tested Honeywell UCN spare parts like SPS5785 and the 5119 series modules is a recurring challenge for process plant maintenance teams. These legacy components are essential for TDC3000 systems, yet sourcing reliable replacements that won’t introduce communication faults demands more than simply matching part numbers. Over the past decade, I’ve seen how poor-quality or untested modules can extend downtime by days when they cause UCN bus errors. This guide explains what you need to know to identify, verify, and source SPS5785, 51198947-100, and 51196653-100 with confidence, including supplier evaluation and compatibility checks that go beyond a basic parts catalog.
Understanding Honeywell UCN Spare Parts
The Universal Control Network (UCN) is the backbone of Honeywell’s TDC3000 distributed control system, linking process controllers, operator stations, and field I/O. Modules on the UCN bus handle power regulation, data exchange, and signal processing. After 20 to 30 years of continuous operation, these modules reach end-of-life or fail without warning. Common failure points include power supply electrolytic capacitors, communication interface transceivers, and analog input drift. Replacing them correctly requires more than a catalog number match because hardware revision, firmware level, and jumper configuration all affect bus performance.
Detailed Look at SPS5785, 51198947-100, and 51196653-100
The three part numbers highlighted in this guide serve different functions within the UCN architecture. The table below summarizes their roles and sourcing remarks.
Part Number
Function
Compatibility Notes

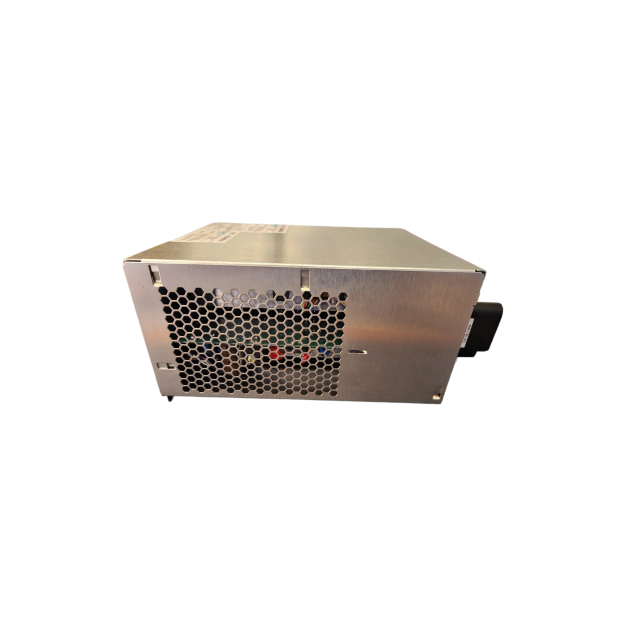

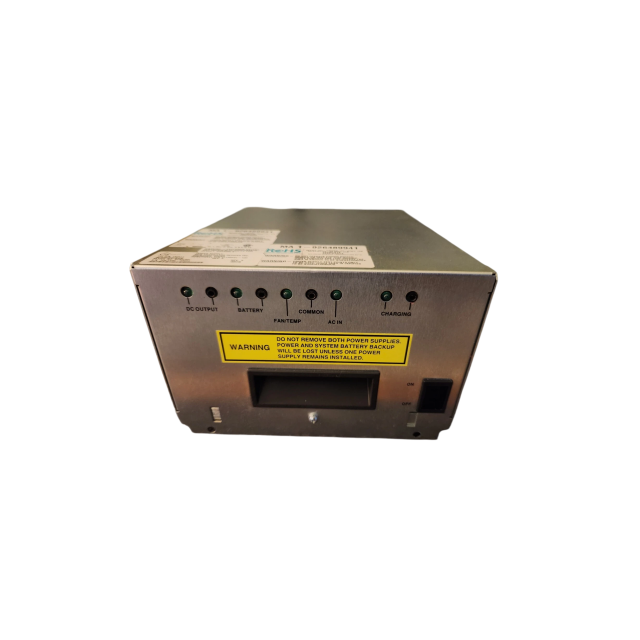

SPS5785
Power regulator module for UCN node racks
Verify input voltage range; later revisions offer wider tolerance.
51198947-100
Digital I/O interface board
Pin-compatible with 5119xxx series, but firmware may differ.

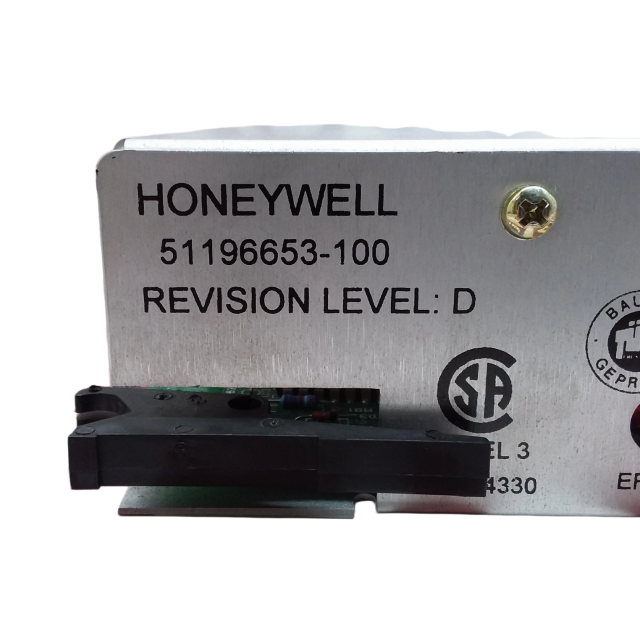

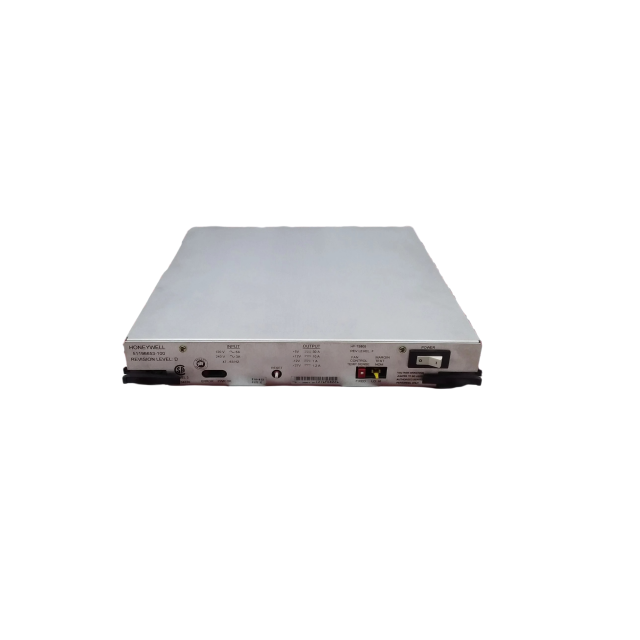

51196653-100
Analog input processor module
Check channel calibration and bus termination settings.
These modules are no longer in active production, so procurement focuses on factory-new old stock, tested refurbished units, or compatible replacements from specialist suppliers.
Compatibility and Replacement Considerations
Before ordering, check the hardware revision code printed on the board’s silkscreen and the firmware version label on the EPROM or flash chip. I’ve seen cases where a 51198947-100 with a slightly older firmware revision caused intermittent communication errors when inserted into a rack running newer node firmware. In our testing lab, we always run a 24-hour burn-in with a loop-back test on the UCN bus before shipping any module. Even when two boards share the same part number, connector pin-outs and bus termination resistors may change between production runs. If your system uses redundant UCN paths, confirm that both channels accept the same module revision without conflict.
Sourcing Reliable UCN Spare Parts
Three factors separate a dependable supplier from a risky one: testing protocol, warranty terms, and logistics speed. A supplier should perform at least power-on self-test, channel loop-back verification, and full-load burn-in on every module before shipment. At Joyoung International Trading, we maintain a stock of tested Honeywell UCN-compatible parts, including 51402497-200, 51199194-100, and CC-PDO801, and we run functional validation on each unit before packing it for express delivery. If your program involves multiple UCN nodes with different firmware revisions, it is worth confirming module compatibility with your supplier before finalizing your BOM. Reach us at chen@htechplc.com with your system details, and we will verify the correct revision for your application. Our team also sources rare parts through global channels when a module is not in current inventory.
Fast Delivery and Global Support
Downtime in a continuous process plant costs thousands per hour. We ship in-stock Honeywell UCN modules within 24 hours of order confirmation using DHL, FedEx, or UPS express services. Delivery to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East typically takes 2 to 4 business days. For critical replacements, we offer same-day dispatch with real-time tracking. Every shipment includes a pre-installation checklist and a test report so your field team can verify the module before powering up. Our after-sales support includes 12-month warranty and remote technical assistance for installation queries.
Common Questions About Sourcing Honeywell UCN Parts
Are these parts still available from Honeywell directly? Most UCN modules are now obsolete or carry lead times exceeding 12 weeks. Third-party suppliers with tested refurbished or new-old-stock inventory provide the fastest path to system restoration, and a growing number of plants rely on this channel to keep TDC3000 systems running.
How can I verify that a module is genuine Honeywell hardware? Inspect the board for Honeywell’s silkscreen logo, original component date codes, and factory solder mask color. A trustworthy supplier will also provide a functional test report and a warranty, which counterfeit or pull-from-scrap sellers cannot match.
Will mixing different firmware revisions on the same UCN bus cause problems? It depends on the node configuration and the specific module type. Some I/O boards tolerate revision differences, but communication-intensive modules such as interface cards often require firmware alignment. We recommend sharing your system’s current revision matrix with your supplier before ordering multiple modules.
What is the typical delivery time for these spare parts? From our stock, modules ship within one day and arrive at most global locations in 2 to 4 business days via international express. For part numbers not in inventory, our sourcing team provides a lead time estimate within 48 hours.
Do you offer technical support after delivery? Yes. Our engineers can review your TDC3000 configuration remotely and guide your maintenance team through module replacement and bus reconfiguration. Send your node layout and part requirements to chen@htechplc.com, and we will confirm compatibility and availability within one business day.
Finding tested Honeywell UCN spare parts that match your system without risking downtime requires a supplier that understands legacy DCS hardware. For SPS5785, 51198947-100, 51196653-100, or any other UCN module, contact Joyoung International Trading at chen@htechplc.com or call +86-181-5013-7565. Send your part number and quantity, and we will confirm stock status and delivery options within one business day.
