Honeywell CC-PAOX01 51405039-275 Replacement Compatibility Guide

Replacing a Honeywell CC-PAOX01 51405039-275 analog output module is not only a matter of finding the same number printed on the card. The replacement also has to match the controller firmware, I/O termination, channel signal definition, and the process output it is driving. A module can be mechanically compatible and still fail to configure or control the field device correctly. This guide covers the checks that maintenance and sourcing teams can run before and after replacing the module, with special attention to revision matching, loop wiring, and spare condition.

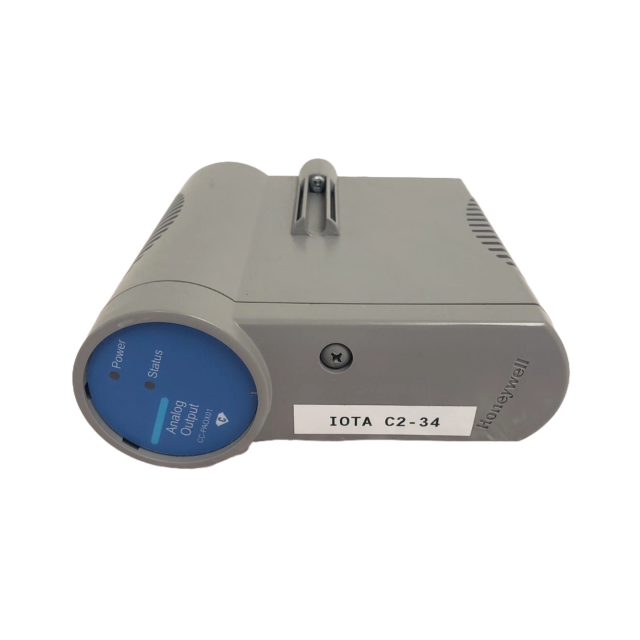

What the CC-PAOX01 Does in a C300 Rack

The Honeywell CC-PAOX01 51405039-275 belongs to the Series C I/O family used with C300 controllers and Experion PKS systems. It provides analog output channels to field devices such as control valves, positioners, variable frequency drives, and panel indicators. Each output loop requires the module hardware, the termination assembly, and the controller configuration to agree on the signal type and channel direction. Because the module sits between the controller and the final control element, a mismatch rarely stays hidden. It usually appears as a failed loop, a configuration download error, an unexpected output level, or a device that does not respond.

Confirm Compatibility Before You Order

Start with the module part number and any engineering revision, then move to the controller and I/O assembly. Confirm that the controller firmware and Experion PKS release support the module revision that will be installed. Check the IOTA wiring and terminal panel because different module revisions can require different field termination or channel numbering. Also confirm the output signal type required by the field loop. If the loop was wired for current output, a replacement module configured or applied as a voltage output can drive a valve positioner incorrectly. When the module is used in a critical loop, verify whether the slot supports redundant operation before replacing a single module with a pair or the reverse.

Analog output module replacement depends on the signal type and the field termination path, not only the printed part number. <Industrial I O Module Types Digital Analog Communication Explained> covers the differences between digital, analog, and communication modules that affect replacement selection.

Part Number and Revision Checks That Matter

51405039-275 is the commercial part number, but spare modules in the field may have different hardware revisions or manufacturing dates. When the part number matches, record the revision from the module label or the system diagnostic display before accepting the replacement. If the replacement has a newer hardware revision, check the release notes or Honeywell compatibility documentation for required IOTA changes, firmware updates, or configuration notes. If the replacement is older than the failed module, it may not support the same built-in diagnostics or loop test behavior. Do not treat a different part number with the same general function as an automatic alternate unless the site’s documented spare list or Honeywell approval explicitly permits it.

Part number matching is only the first filter when a legacy I/O card has multiple revisions and spare variants. <GE IS200AEPAH1A Mark VI Analog I O Module Sourcing Guide> covers how analog I/O module sourcing is evaluated against revision and system compatibility.

Installation Checks After Replacement

After the replacement module is inserted, do not apply process control until the controller recognizes it and the software status is healthy. Confirm the module type and revision appear in the controller diagnostics, then run the loop checks that apply to the output. For a valve positioner, verify no movement before the controller output command, then confirm the failed or standby output command produces the expected field movement. For a drive or panel indicator, verify that the controller output value and the field device value move in the same direction and scale. If the module has a fault indicator or LED pattern, compare it with the system documentation before returning the loop to automatic. Keep the old module labeled with its failure symptom, part number, revision, and loop information instead of mixing it with unknown spares.

Avoiding Output Faults and Loop Wiring Problems

Output loop faults often look like a replacement card problem when the real issue is wiring, power, or the field device. Before replacing any output module, check the loop supply voltage, field wiring polarity, and the load resistance presented by the actuator or input card. An open loop or a shorted field cable can cause a healthy output channel to report a fault or drive an unexpected level. If the old module was replaced and the same channel still fails, inspect the termination contacts and the commons on the IOTA. Bent or oxidized pins, loose screws, and partially inserted connectors can duplicate a module failure. Repair the loop path first when the evidence points to the field side; this prevents a second module from being damaged or wasted.

Selecting a Replacement Source Worth Using

Sourcing a replacement card from a supplier should answer the same engineering questions that the site asks during installation. A useful supplier will ask for the part number, revision, controller system, and whether the module is for a simplex or redundant output application. It should also confirm whether the module is being supplied as new original, excess OEM stock, or a tested used unit. For companies like Joyoung International Trading Co., Limited, replacement support includes checking the part and revision against the customer’s system description before shipment. That step reduces the risk of receiving a module that is physically similar but not the correct build for the current IOTA or firmware level.

An output module can be electrically sound but still not be the right replacement when the revision does not match the site’s termination or configuration. <Foxboro FBM202 Sourcing Reliable AO Field Bus Module Replacements> covers the revision and field termination checks that apply to AO module replacement sourcing.

Replacement Details to Send Before You Order

Before ordering the Honeywell CC-PAOX01 51405039-275, send the module part number, any revision or suffix on the label, the controller firmware version, and the type of output device or loop the card controls. That information helps a supplier confirm the replacement is suitable for the slot, the IOTA, and the system release. Contact Joyoung International Trading Co., Limited at chen@htechplc.com or +86-181-5013-7565 for a checked replacement option.

FAQ

Can I use a different Honeywell analog output part number as a substitute?

No, unless the site’s spare list or Honeywell documentation explicitly permits it. Part numbers distinguish module functions and generation, even when the cards look similar. A different number can match the rack but not the controller, termination assembly, or channel behavior. Confirm the approved spare before ordering.

Does the 51405039-275 number alone identify the correct revision?

It identifies the part number, but not necessarily the hardware or firmware revision. A replacement card should also be checked against the revision label, system diagnostics, and the controller release. When in doubt, record the failed module’s revision and compare it with the replacement before installation.

Can the CC-PAOX01 be replaced while the C300 controller is running?

Where the system is configured for hot removal and redundancy, replacement may be possible while the controller is running. For a simplex output in a live process, the loop should be placed under manual or bypass and the process risk reviewed. Follow the site’s shutdown or bypass procedure before removing any I/O module.

What should I check first if the replacement module still shows an output fault?

Check the loop wiring, termination contacts, field device load, and power supply. A repeated output fault after replacement often points to the field side rather than a second failed card. Inspect the IOTA connectors, commons, and loop polarity before replacing the module again.
