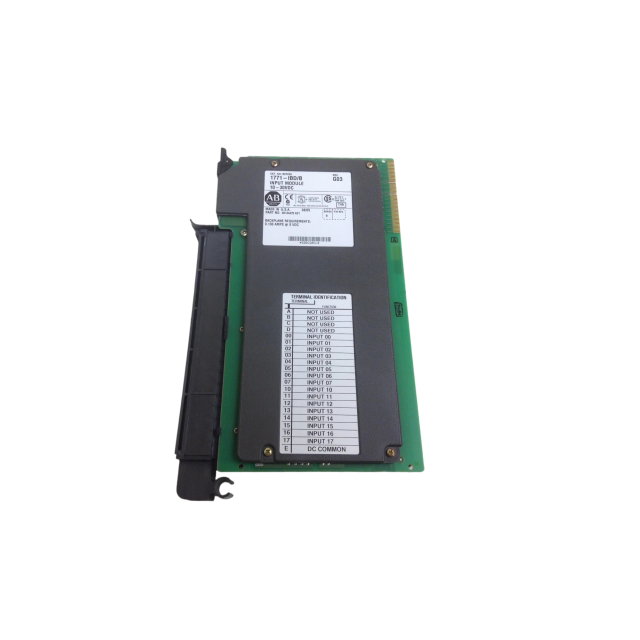

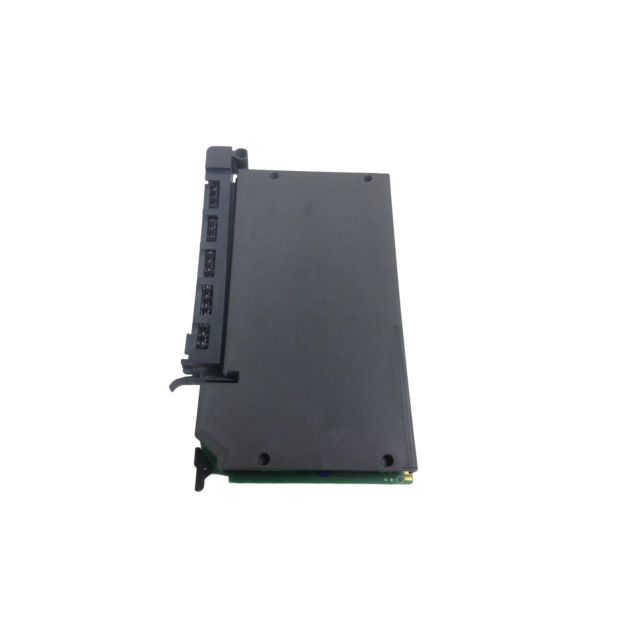

1771-IBD Advantages
The Allen‑Bradley 1771-IBD Input Module stands out from comparable 1771 I/O modules in several key areas.
16-channel high-density DC discrete input design. The Allen‑Bradley 1771-IBD Input Module integrates 16 independent DC input points, the Allen‑Bradley 1771-IBD Input Module saves chassis slots for projects with large quantities of DC sensing signals.
Optical isolation protection. The Allen‑Bradley 1771-IBD Input Module adopts optical isolation between field DC circuit and PLC backplane circuit, the Allen‑Bradley 1771-IBD Input Module prevents field surge and noise from damaging the controller backplane.
Individual channel LED status feedback. The Allen‑Bradley 1771-IBD Input Module is equipped with LED for each channel, the Allen‑Bradley 1771-IBD Input Module allows on-site technicians to quickly check which input point is triggered.
Simple wiring and terminal maintenance. The Allen‑Bradley 1771-IBD Input Module uses a detachable screw terminal block, the Allen‑Bradley 1771-IBD Input Module facilitates wiring replacement and module swap without reworking all field cables.
Full compatibility with standard 1771 chassis. The Allen‑Bradley 1771-IBD Input Module can be installed in all standard 1771 I/O chassis, the Allen‑Bradley 1771-IBD Input Module works with other 1771 input, output and communication modules in the same rack.
Stable for long-term legacy field acquisition. The Allen‑Bradley 1771-IBD Input Module is a classic standard DC input spare part for PLC‑5 systems, the Allen‑Bradley 1771-IBD Input Module is widely stocked for old production line emergency replacement.
1771-IBD Applications
Field DC discrete signal acquisition for PLC‑5 racks. The Allen‑Bradley 1771-IBD Input Module is a standard DC digital input unit within Allen‑Bradley 1771 PLC‑5 systems, the Allen‑Bradley 1771-IBD Input Module receives signals from proximity sensors, limit switches and push buttons.
Packaging and conveyor machine control cabinets. The Allen‑Bradley 1771-IBD Input Module collects DC sensor feedback signals from legacy sorting lines, packaging machines and belt conveyors.
Water and wastewater pump and valve feedback monitoring. The Allen‑Bradley 1771-IBD Input Module monitors DC status feedback of pumps, gate valves and auxiliary equipment.
Chemical plant auxiliary skid control. The Allen‑Bradley 1771-IBD Input Module is used for discrete status collection on PLC‑5 based process skids.
Spare replacement for end-of-life automation equipment. The Allen‑Bradley 1771-IBD Input Module is stocked as spare-replacement unit for existing 1771-IBD field installations to reduce production downtime.

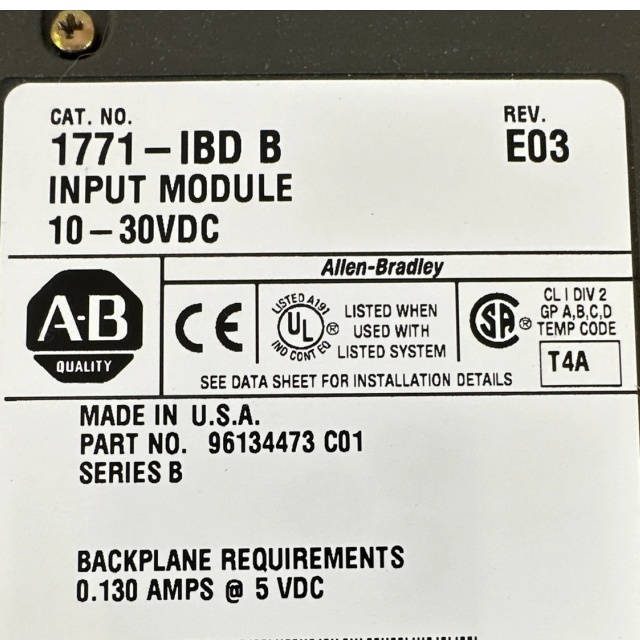

1771-IBD Certifications & Compliance
The Allen‑Bradley 1771-IBD Input Module holds the following international safety and compliance approvals:
UL listed — North‑American industrial control equipment safety approval.
CE certification — European industrial control equipment safety and EMC compliance.
C‑Tick marked — EMC compliance for Australian and New Zealand markets.
Class I Division 2 certified — Suitable for installation in specified hazardous classified locations.
All units supplied are 100% new original Allen‑Bradley parts. Every Allen‑Bradley 1771-IBD Input Module unit is functionally tested before dispatch, packed in professional anti-static packaging, and covered by a one-year warranty from the date of delivery.
